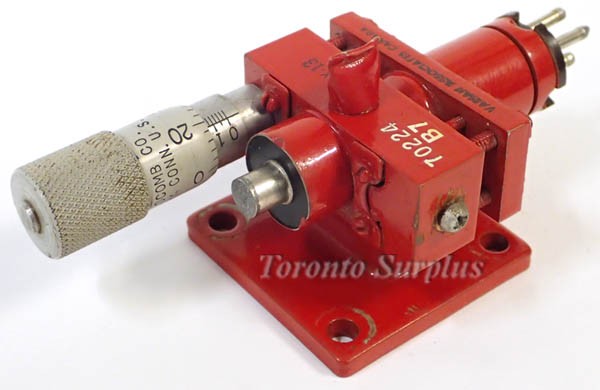

The X-13 micrometer-tuned reflex klystron is a power source for microwave tests and measurements.  It delivers a CW output of at least 100 milliwarrs under optimum load conditions over the ferquency range of 8.1 to 12.4 GHz.  The very wide tuning range and ample power output provide the versatility required for its use as a general-purpose microwave power source.  The low-current heater assures long tube life and excellent over-all efficiency.

Maximum Ratings:

Resonator Voltage: 550 Vdc
Reflector Voltage: -1000 Vdc
Body Temperature: 160°C

Frequency Range: 8.1 to 12.4 GHz
Power Output, min: 100 mW

Additional specifications available upon request.
