Product Description

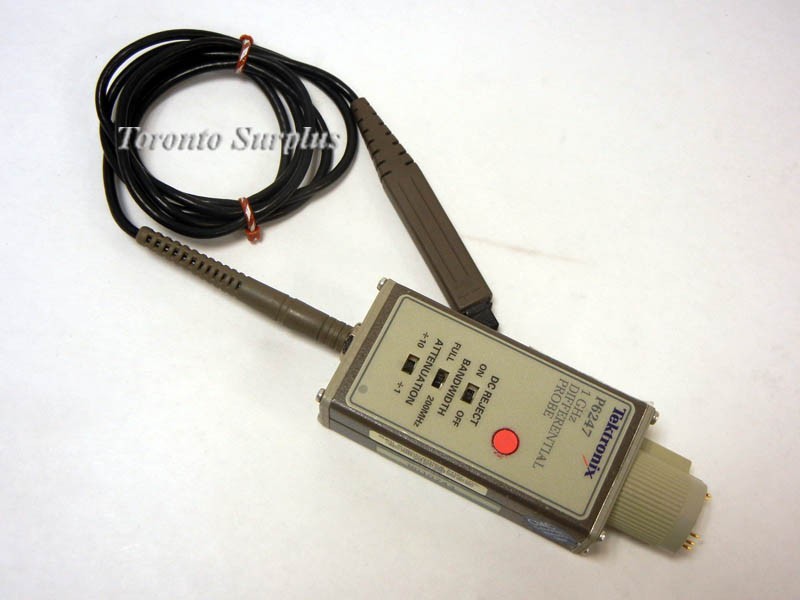

The Tektronix P6247 Enables users to make time domain or frequency domain measurements on high bandwidth signals commonly found on disk drive, digital ic design (Rambus) and communication applications. The P6247 is ideal for design verification of disk drive read, channel ekectronics and timing analysis for trouble shooting ground bounce problems associated with high speed logic. It can also be used for pulse shape or cross talk compliance testing of high speed communication signals.
CHARACTERISTICS:
Rise Time: <350 ps
DC Attenuation Accuracy: ±2%
Common Input Voltage: ±7.0V, 1X; ±7.0V, 10X
Electrostatic Immunity: >15kV
