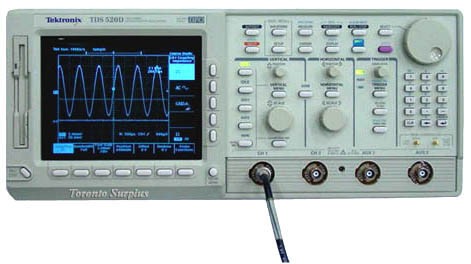

Tektronix TDS520D General Information
Performance Characteristics
Form Factor Benchtop
Bandwidth 500 MHz
Number of Channels 2 ch
Simultaneous Channels 2 ch
Simultaneous Max. Sampling Rate/ch 1 GSa/s
One ch. only max. sampling rate 2 GSa/s
Max. Single Shot bandwidth 500 MHz
Max. Record Length 50000 pt/sec
Min. Vertical Sensitivity 1 mV/div
Maximum Vertical Sensitivity 10 V/div
Rise time 700 ps
Number of Bits 8 bits
Input Impedance 1 MOhm
Input Impedance (alternate) 50 Ohm
Input Coupling AC,DC,GND
Maximum Input Voltage 400 Vrms
Main time base - lowest 500 ps/div
Main time base - highest 10 s/div
Timebase accuracy 0.0025 %
Trigger Source External,Internal
Trigger Modes Auto,Edge,Logic,Normal,Pulse,Single
Minimum Trigger Holdoff 16 ns
Minimum Glitch Trigger 1 ns
Display Type LCD
Display Size 17.78 cm
Display modes Dot,Persistence,Vector
Programmability/Connectivity
User Interface Proprietary
Ports to Peripheral Devices GPIB
Test Pattern Storage 10 Patterns
Novram data storage Yes
Data Storage Type FDD
Programming Language Windows
Power Requirements
Input Power Universal (Auto Sense and Switch)
Physical Dimensions
Width 445 mm (17.51 in)
Height 434 mm (17.08 in)
Length 193 mm (7.59 in)
Weight 14.1 kg (31.08 lb)
