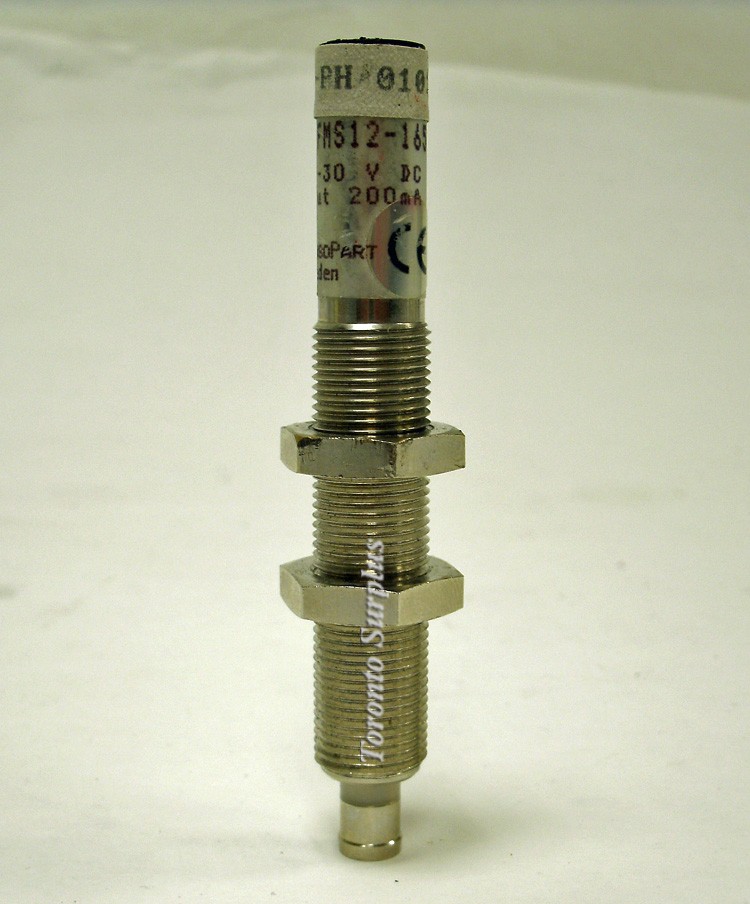

Product Description
Scanning Distance {mm} 50..200
Used Light IR 880nm, pulsed
Swithching Frequency {Hz} 200 push-on connector 3-pin
Signal Output PNP
Operating Voltage range 10...30V DC
Current Consumption no Load 15
Max output current { mA } 200
Max Output Voltage Drop 2.4
Output signal indicator LED yellow
Reference Material Kodak white 90% 100mm x 100mm
Max hysteresis 10%
Sensitivity Adjustment Potentiometer
Casing Material Brass, nicklelized
Protection Standard IP65
Ambient temperature range -20......+60°C
