Product Description

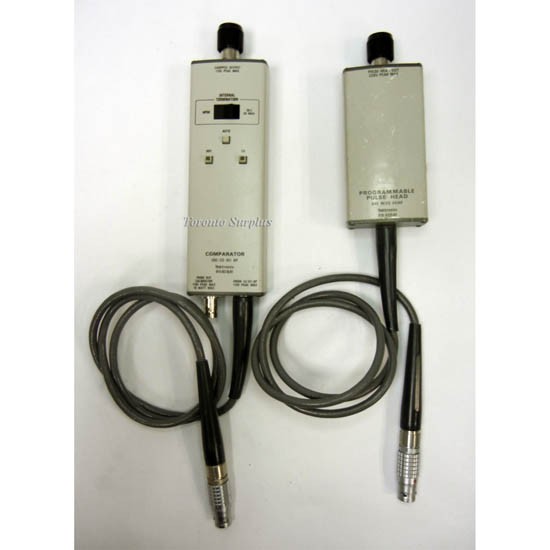

These two accessories are used with the Tektronix CG551AP Programmable Calibration Generators
- 015-0311-01 Programmable Pulse Head: 220V Peak Max
- 015-0310-01 Comparator Head: Used to calibrate built-in oscilloscope calibrators against the signals available from the CG. Both the oscilloscope calibrator and CG standard amplitude signals are applied to the Comparator Head and simultaneously displayed on the oscilloscope CRT. The CG signals are then varied to obtain congruent displays. Errors are then displayed on the CG readout.
