Product Description
Summit Technology / PowerSight PS4000 / PS 4000 / PK414 Power Quality Analyzer Complete System Kit with four 1000 amp current probes, CAT III Safety & RS 232 Serial Communications
This complete package has all that you need for complete analysis of single and 3-phase circuits up to 1000 amps and voltages up to 600 volts.
PS4000 Features:
- Complete harmonic analysis of every cycle of all three voltages and all four currents, simultaneously, while doing allother functions
- Swell, sag, and inrush detection of every half cycle of all three voltages and all four currents, simultaneously, while
doing all other functions
· High Speed Transient detection and waveform capture on all three voltage inputs and all four current inputs,
simultaneously, while doing all other functions
· Complete power/energy/cost analysis of single phase, two phase, three phase, and 3½ phase circuits while
simultaneously doing harmonic, swell, sag, and transient analysis on all inputs.
· Compatible with VSD outputs. 22-200 Hz, 360-440 Hz and DC power
· Internal rechargeable battery for hours of hand-held or powerfail operation
· Complete logging, triggering, and waveform capture
COMPREHENSIVE AC SINGLE AND THREE PHASE POWER MEASUREMENTS, DC, 400Hz
You can use the PS4000 on all types of power studies, i.e: Power quality analysis: Event capture of swells, sags, inrush, and transients. Simultaneous measurement of energy and power consumption, logging of RMS voltage and current, plus harmonics measurements. Capable of DC measurements as well as on 50Hz, 60Hz or 400Hz systems. With all these capabilities it compares favorably with other instruments that are twice the price!
You get a rugged tool for field use with a multimeter-type LCD display of real time values for spot measurements, and for checking your connections. It comes with with PowerSight Manager (PSM) software for the PC and a powerful Report Writer to tabulate and document your results in a professional-looking document. PSM can also be freely downloaded with no license restrictions making it easier to share data and collaborate with others.
APPLICATIONS
AC Single phase, three phase, or DC
General data logging of volts and amps, THD, power, Hz, (internal memory allows hours to weeks of monitoring)
Power quality investigations: Catch power disturbances, power fluctuations. Sags, swells, dips, transients, spikes, impulses
Panel balancing, circuit and panel capacity, load studies of circuits, transformers, switchgear, substations etc.
Energy audits, energy savings verification, power consumption, demand analysis
Power factor studies
Sizing generator, UPS systems etc. Inrush currents of machines.
Load bank studies.
High Frequency Noise option

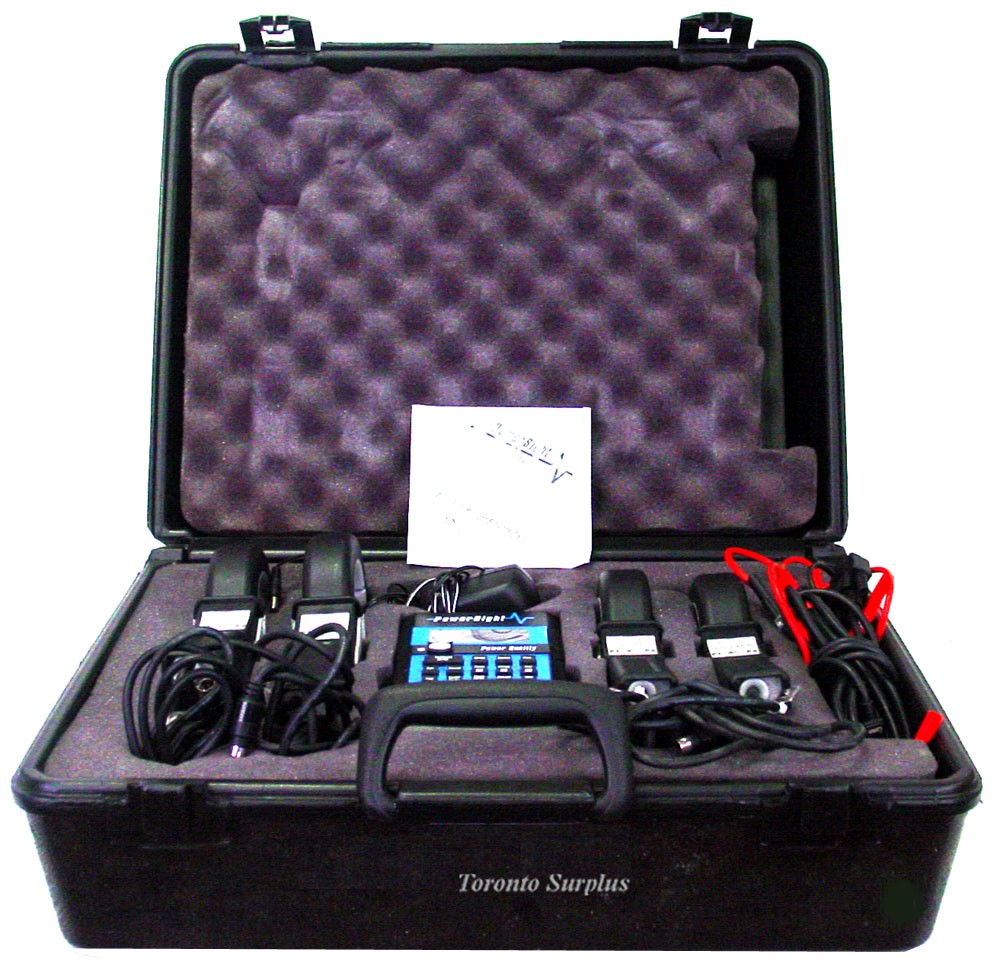

Set Comes complete with: PS4000 Power Quality Analyzer, four HA1000 1000Amp current probes, CAT II Safety, RS 232 Serial Communications, AC Charger and software.. all packaged in a handy hard shell carrying case !
