Product Description

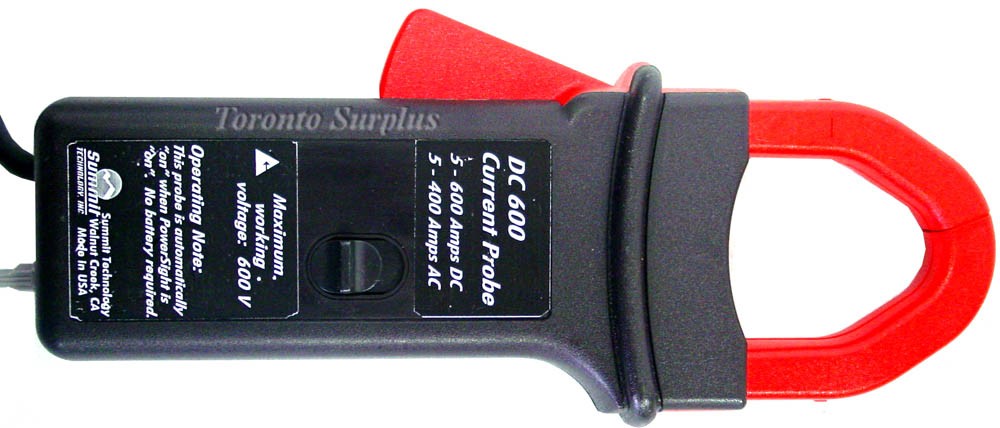

Summit Technology DC 600 / DC600 Clamp On Current Probe
5-600 Amps DC
5-400 Amps AC
Maximum working voltage: 600V
Operating Instructions:
Plug this probe into one of the current inputs of PowerSight. Observe the current reading before proceeding. Adjust the current reading to a minimum by adjusting the DC Zero control located in the handle by the cable. To adjust the DC zero control, push in and turn. When done, calmp onto the cable to measure current.
