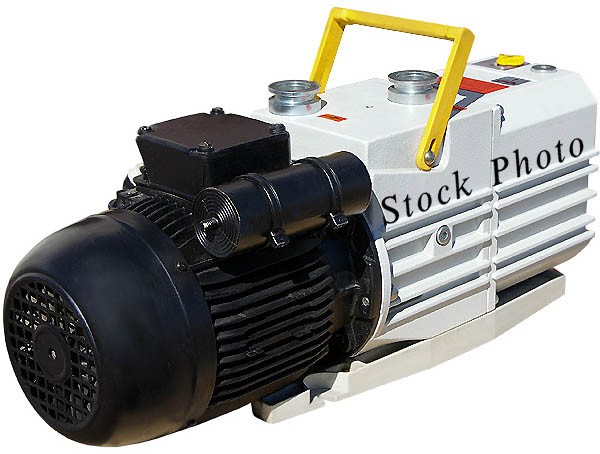

Pfeiffer DuoLine DUO 10 M / DUO10 / DUO10M / PK D62 802B Two 2 Stage Rotary Vane Pump with Magnetically Coupled Drive

Cleaner and more dependable for your process and environment!!

Technical Data:

Pumping speed at 50 Hz:                                       10m³/h
Pumping speed at 60 Hz:                                       12m³/h
Ultimate Pressure: Total without gas ballast:          5-10^-3mbar
Ultimate Pressure: Total with gas ballast:               1-10^-2
Water vapor tolerance at 50 Hz:                             30mbar
Water vapor tolerance at 60 Hz:                             36 mbar
Water vapor capacity at 50 Hz:                               210 g/h
Water vapor capacity at 60 Hz:                               300 g/h
Rated Power 50 Hz:                                                0.37kW
Rated Power 60 Hz:                                                0.43kW
Emission noise level (50 Hz)                                   57dB(A)
Operating Fluid Charge:                                          1l
Weight:                                                                    27kg
Power input:                                                            110 VAC, 60 Hz

See Pictures for additional specifications

SPEC SHEET AVAILABLE UPON REQUEST
