Product Description

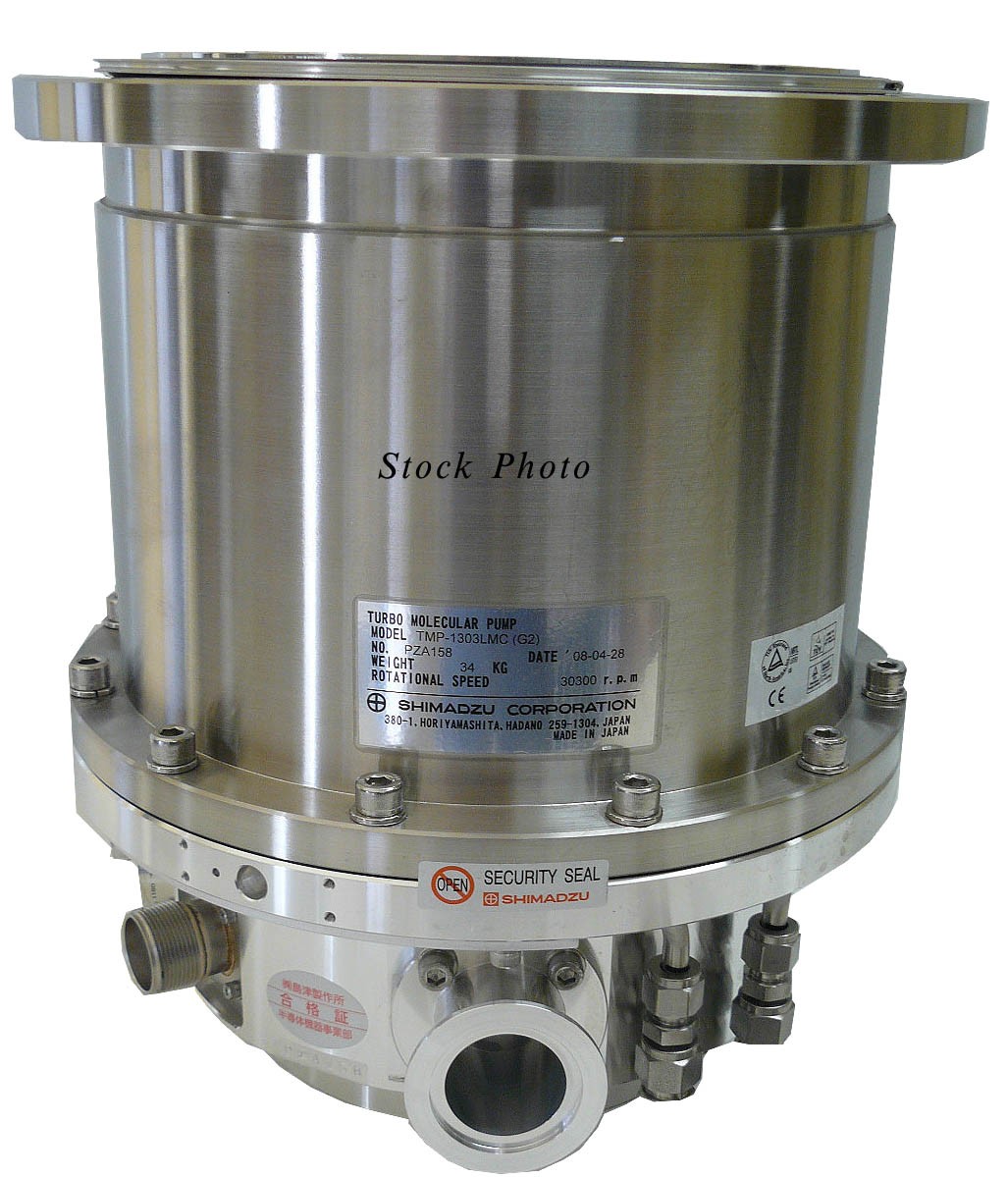

Shimadzu TMP-1303LMC-G2 / TMP1303LMCG2 / TMP-1303LMC / TMP1303LMC Turbo Molecular Pump TMP Rotational Speed 30300 RPM BRAND NEW / NOS
Flange Size: ISO250 12 bolt
Cooling method: Liquid cooling (water)
Ultimate pressure: 10-7 Pa order (10 -9 Torr order)
Pumping Speed:
Nitrogen- 1300L/s
Helium- 7050 L/s
Hydrogen- 750 L/s
Compression Ratio:
Nitrogen- 6 x 108
Helium- 1 x 104
Hydrogen- 1 x 103
Start up time: 7 minutes or less
Mounting Position: Any direction
Bake-out temperature at an inlet flange: 120°C or less
Inlet Flange: 11 1/4 CF Type
*Full Spec Sheet available upon request
