Product Description

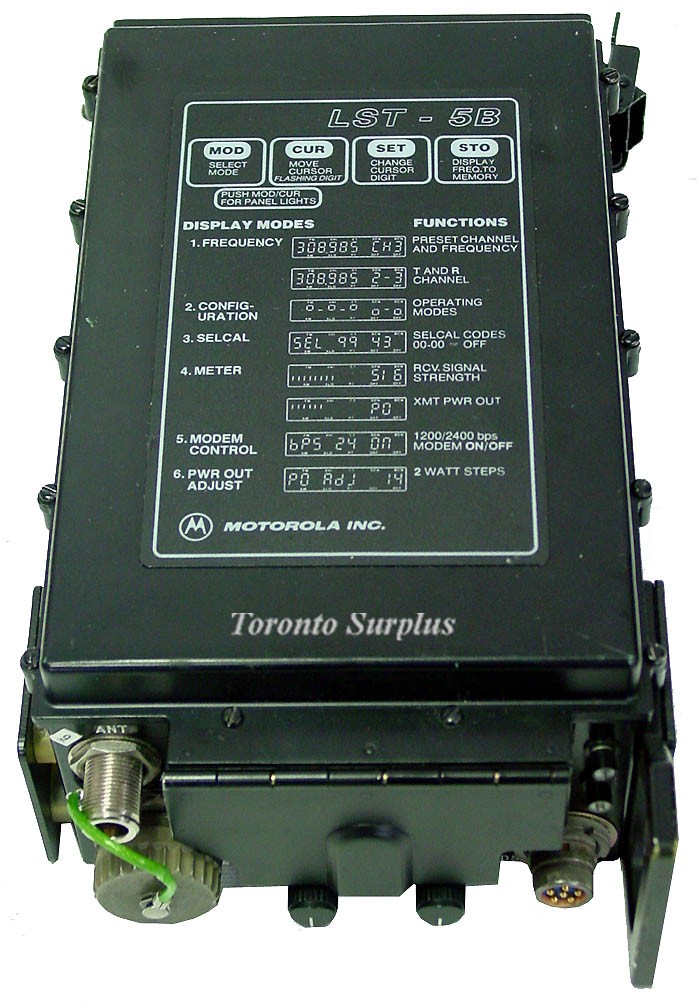

Motorola LST-5B, P/N/ 01-P22963H 002 SATCOM UHF Radio Satellite Terminal
Motorola's LST-5B Lightweight Satellite Terminal is designed for ease and reliability of operation. Relative received signal strength can be displayed on the easy-to-read, nighttime lighted LCD. Transmitter output power is adjustable in 2-watt steps. All modes of operation, frequencies, bands, and presets are selected through four push-buttons. In SEL-CALL (Select-call) mode, the caller selects and keys any one of nine designated units through a digitally coded transmission, a visual and audible handshake is received and the caller initiates a message. A similar procedure establishes a conference call to all units. This AM/FM/PM radio and modem operates in 5 kHz narrow band mode at data rates of 1200 BPSK and 2400 shaped BPSK; it operates in wide band modes on AM or FM voice and cipher text.
Features:
-small size- 209 cu. inches
- Lightweight - 7.8 lbs
- Microprocessor- controlled
-Nine presets
-Select-call/conference call
-Scan, beacon, T/R, secure and relay modes
-Remote control - all functions
-self contained modem
-Data rates: 1200, 2400 bps
-Shaped BPSK at 2400 bps
-225 MHz to 400 MHz band operation
- MIL-STD- 188C data interface
-Operates with ANDVT, Sunburst processor, KY 57-58
-Adjustable transmitter output power
-Received signal indicator
