The Agilent 8560E portable RF spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

FEATURES:

• Continuous 30 Hz to 2.9 GHz sweep
• Fast digital resolution bandwidths of 1 3 10 30 and 100 Hz
• Adjacent channel power channel power carrier power occupied bandwidth percentage and time-gated measurements standard
• Precision timebase and 1 Hz counter resolution
• MIL-T-28800 rugged
• Measurement personalities for digital radio and phase noise measurements

The 85620A adds measurement personality capability enough memory to store 100 traces memory-card capability and computer capability without an external controller. Create complex measurement routines and save then as single-key measurements stored on memory cards or in the module's 128 KB of battery-backed RAM.

Additional specifications available upon request.

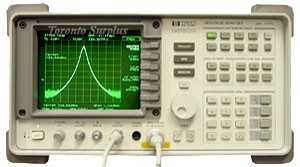

Pictured is the 8560A but the E looks the same.
