Product Description
Half Brick PowerQor Family
- Ultra high efficiency, up to 91% at 3.3Vout
- High current output, modules range from 20 to 60 amps
- Industry standard size (2.3 x 2.4) and pin out
- Low profile, only 0.4 (10.2mm) high & Low weight 1.9 oz. (54g)
- No heatsink baseplate or potting materials required
- Full feature option provides current sharing
The following units are all:
Product Family: PowerQor Input: 48 VDC (35V-75V w/100V input transient)
Size: Half Brick Performance Series: Tera Thermal Design: Open Frame
Max Output Current: 60 Amp Logic: Negative
Item Specifics:
PQ48015HTA60NNF - Output: 1.5 VDC Pin Length: 0.145"
Features: Full Feature
Professionally pulled from boards..
Please click here for data sheet.

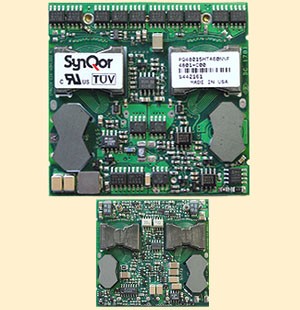

Pictured is the PQ48025HTA60NNS but they all look alike.
