Product Description
This Single-Output Power Module is a low-profile, DC-DC converter that operates over an input voltage range of 36 Vdc to 75 Vdc and provides one precisely regulated output. The output is isolated from the input, allowing versatile polarity configurations and grounding connections. This modules has a maximum power rating of 15W and efficiencies of up to 84% for this 5 V, 3 amp output. Built-in filtering for both input and output minimizes the need for external filtering.
FEATURES:
Low profile: 10.2 mm x 25.4 mm x 50.8 mm (0.4 in. x 1.0 in. x 2.0 in.) with standoffs (9.6 mm (0.38 in.) with standoffs recessed) Wide input voltage range: 36 Vdc to 75 Vdc Output current limiting, unlimited duration Output overvoltage clamp Undervoltage lockout Input-to-output isolation: 1500 V Operating case temperature range: 40 C to +105 C
These units have the Output Voltage Adjustment and
Negative Logic Remote On/Off

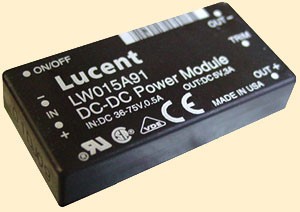

LW015A91 - Output 5 VDC, 3 Amp, 15 W,
Typical Efficiency: 82-84% (32 in stock)
Please click here for data sheet.
Our converters are made by Lucent "
