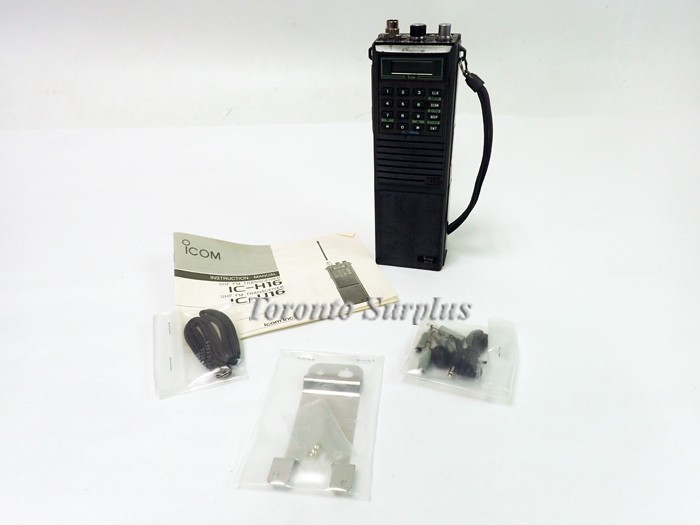

IC-H16 Portable VHF Transceiver

RX/TX: 136-144 MHz or 148-174 MHz (two versions)
Output power: 5 W
Modes: FM
Receiver sensitivity: 0.35 µV (FM, 12 dB SINAD)
CTCSS standard

GENERAL

• Frequency Coverage:

  136-144 MHz (low-band type)

  148-174 MHz (high-band type)

• Mode: FM (16K0F3E)
• Number of channels: Programmable up to 16 Rx and Tx frequencies
• Channel spacing: ±25 kHz
• Power supply requirement: CM-2,CM-3,CM-4,CM-5,CM-5A,CM-7,CM-8 OR CM-12 battery packs
• Usable Temperature Range: -30°C to +60°C; -22°F to +140°F
• Frequency stability: ±0.0005%
• Dimensions (with CM-8): 65(W) x 196(H) x 38(D) mm; 2.6(W) x 7.7(H) x 1.5(D) in (projections not included)
• Weight (with CM-8): 595 g; 1.3 lb
• CTCSS tone frequency: Programmable all EIA standard tones

TRANSMITTER

• Output power:

  High: 3.0 W (with CM-8); 5.0 W (with CM-7)

  Low: 300 mW (with CM-8)

• Spurious emissions: -60 dB
• Harmonic emissions: -60 dB

RECEIVER

• Sensitivity (for 12 dB SINAD): 0.35 µV
• Squelch sensitivity (threshold): 0.4 µV
• Adjacent channel selectivity: -65 dB
• Modulation acceptance: ±7 kHz
• Intermodulation rejection: -65 dB
• Image rejection: -75 dB
• Spurious rejection: -65 dB
• Audio output power: 500 mW with an 8 ohm load

  Please note: Battery and Antenna not included
