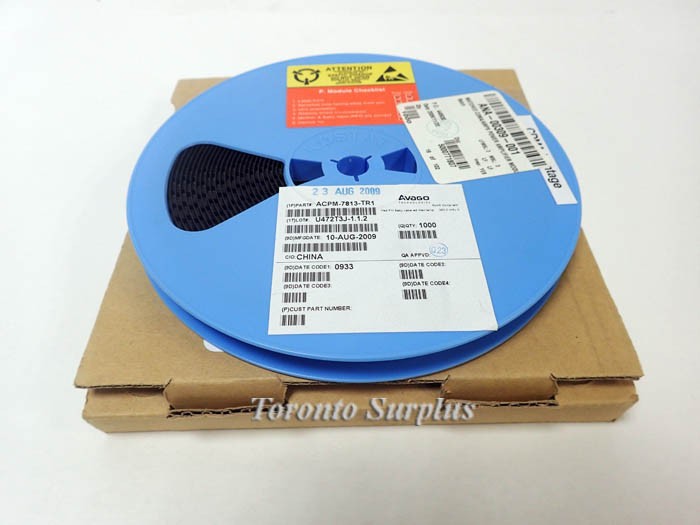

The ACPM-7813 is a fully mathed CDMA Power Amplifier module. Designed around Agilent/Avago Technologies' new EnhancementMode pHEMT process, the ACPM-7813 offers premium performance in a very small form factor. Fully matched to 50Ofms on the input and output.

The ACPM-7813 amplifier has excellent ACPR and efficiency performance at max Pout and low quiescent current with a single bias control voltage. For even lower quiescent current, a dynamic bias control circuit can be used by varying the voltage on the Vcntl pin between 1.2V to 2.5V.

FEATURES

• Operating Frequency:  824-849MHz
• 28.5 dBm Output power @ 3.4V
• High efficiency: 40% PEA
• Dynamic bias control for low midpower Idd
• Very low quiescent current with single control voltage
• Internal 50 Ohm matching networks  for both RF in /out
• 3.2-4.2 linear operation
• cdma2000 1xRTT capable

APPLICATIONS

• CDMA Handsets
• Datacards
• PDA's
