Product Description

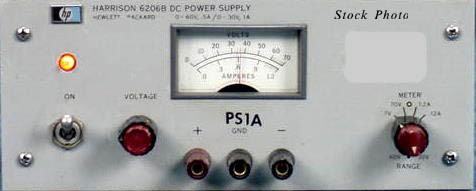

The Agilent/HP 6206B features: 0 to 60V/0.5A, 0 to 30V/1A, 30W. CV/CL, metered. Auto series, parallel, and tracking. Remote sensing. Independent voltage controls. Short-circuit proof.
Features
- Output 1 Max. power: 30 Watts
- Output 1/Range 1 Max. Current: 1 A (0 V to 30 V)
- Output 1/Range 2 Max. Current: 0.5 A (0 V to 60 V)
- Voltage Ripple and Noise: 200 uV
- Load Regulation, Voltage: 4 mV
- Line Regulation, Voltage: 4 mV
- Programming Resolution (% of full scale): 0.17 %
