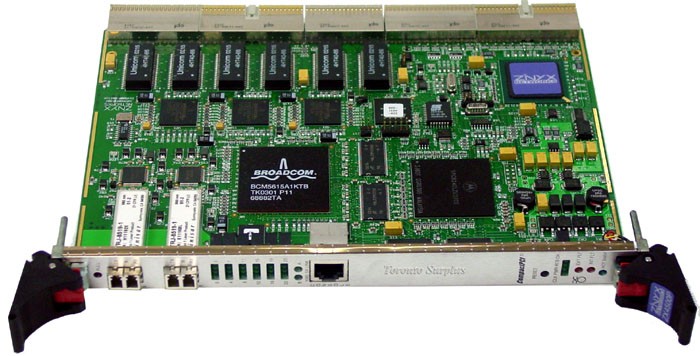

Znyx Networks ZX4500P Extensible Managed Switch for PICMG 2.16 CPSB Chassis

Features:

6U PICMG 2.16 Fabric slot compliant
Twenty-four 10 / 100 Mbps Fast Ethernet ports
Two 1000 Mbps Gigabit Ethernet ports
Layer 2 Switching
Layer 3 IP Routing
Layer 2-7 Packet Classification / Filtering
6.6 Million Packets per second (Line-rate)
IPMI
Auto MDI-X
Motorola MPC8240 PowerPC processor w/ 603e
PCI-to-PCI bridge to host
Fully HotSwap Compliant
PICMG 2.16 Node slot compliant

The ZX4500P with OpenArchitect is an extensible managed switch for embedded high-availability Ethernet in CarrierClass telecommunications systems. The 6U switch provides line-rate Layer 2 switching, Layer 3 IP routing, at line-rate plus Layer 4-7 packet classification and filtering for telco chassis based on the PICMG 2.16 CompactPCI Packet Switching Backplane (CPSB) standard. The integrated OpenArchitect software environment provides a broad range of "out of the box" protocols to establish extensible routing, control and management policies. The switch also eases and enhances remote manageability by incorporating the Intelligent Platform Management Interface (IPMI) standard.
