Product Description

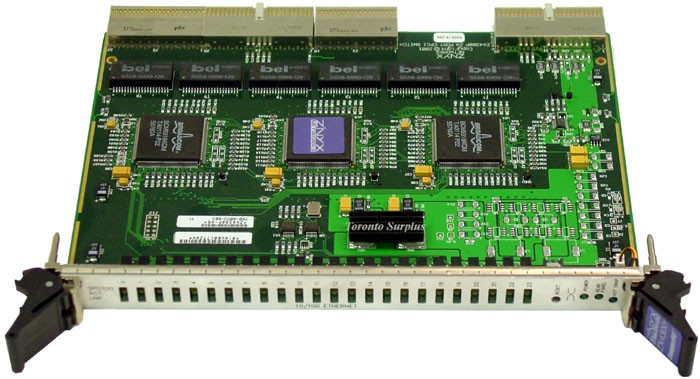

Znyx Networks ZX4300P Series 24 Port CPCI Switch for PICMG 2.16 CompactPCI Packet Switching Backplane Chassis
The ZX4300P CompactPCI Ethernet 10/100 Mbps switch is the most cost-effective and flexible solution to Embedded CarrierClass Layer 2 switching requirements. ZNYX Networks' ZX4300P is the first switch designed to support the PICMG 2.16 specification for a CompactPCI Packet Switching Backplane (CPSB), but it can also be deployed in a standard CompactPCI chassis by using an optional 24-port rear transition board (RTB). There are three configurations where the ZX4300P may be employed: When installed in the fabric slot of a CPSB chassis, the ZX4300P includes support for the extended CPSB specification, routing all 24 10/100 ports to the backplane. It also supports the typical 19 node standard CPSB chassis, and, with the addition of the ZXRTB05 RTB, routes the remaining 5 ports to rear-panel RJ-45 connectors. This allows the systems architect to easily add other chassis to the switched backplane fabric.
The ZX4300P may also be installed in a node slot of a CPSB chassis and paired with a ZXRTB24 rear transition board. This setup will provide 22 (not 24) 10/100 ports for rear panel I/O. In this configuration, the ZX4300P may also communicate at 10/100 Mbps over the CPSB backplane via port 23 to an intelligent, managed CPSB switch, such as a ZX4500P, located in Fabric slot A, and via port 07 to a ZX4500P switch in Fabric slot B. In a third configuration, the ZX4300P is installed in a standard CompactPCI chassis peripheral slot (without an H.110 bus), and configured with a ZXRTB24 RTB to provide rear panel I/O for all 24 10/100 ports. This permits stand-alone operation of a single, or multiple, layer 2 switches in a CompactPCI chassis to gain the advantages of HotSwap and redundant power supplies offered by some chassis.
Main Features
* 24 port 10/100 Mbps Ethernet Switch
* Layer 2 unmanaged switching
* Use in:
PICMG 2.16 fabric slots
PICMG 2.16 node slots
CompactPCI peripheral slots
* Two optional Rear Transition Boards
* Designed for NEBS Level 3 compliance
* Non-blocking line-rate performance
* 802.3x and back-pressure flow control
* HotSwap and CarrierClass
* Works with any host OS or CPU
