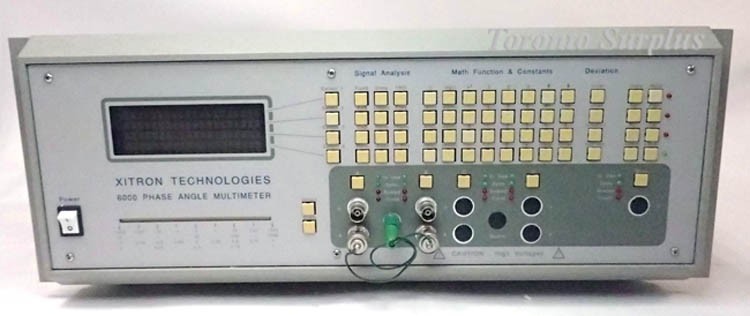

Xitron Technologies 6000 Phase Angle Multimeter
6000 - 2+INTA

• Wide bandwidth (0.1Hz – 100kHz)
• 0.05% basic amplitude accuracy
• 0.05° phase accuracy
• Total & individual harmonic analysis
• 100ppm accuracy, 1ppm resolution, frequency measurements
• 4-line scrollable (50 lines total) display and 101 element nullmeter
• Separate amplitude and frequencyscaling and phase offset on all outputs
• Phase sensitive or frequency selective voltage, current power and impedance measurements
• Frequency response and distortion analysis
• Front panel configuration lockoutfor dedicated production and QC test applications
• Can be configured to emulate older analog PAVs that exist in the market

Instrument preconfigured with the following measurements setup:

• Total
• In-phase
• Quadrature
• Fundamental
• Phase Angle
