Willtek / Aeroflex 9102 Handheld Spectrum Analyzer 100kHz...4GHz

Please note: Our 9102s are Branded as Willtek."

Portable Spectrum Analyzer Designed for Scalar Network and Spectrum Analysis

 Willtek’s 9102 Handheld Spectrum Analyzer is a multifunction instrument designed for lab and field applications concerning scalar network and spectrum analysis, including cable and antenna measurements and EMC pre-qualification tests. The basic 9102 has a frequency range of 100 kHz to 4 GHz and a resolution bandwidth (RBW) of an exceptional 1 kHz. An optional frequency extension allows measurements up to 7.5 GHz. The 9102 is small in size and weight, with a large, bright display and easy-to-use menu structure.

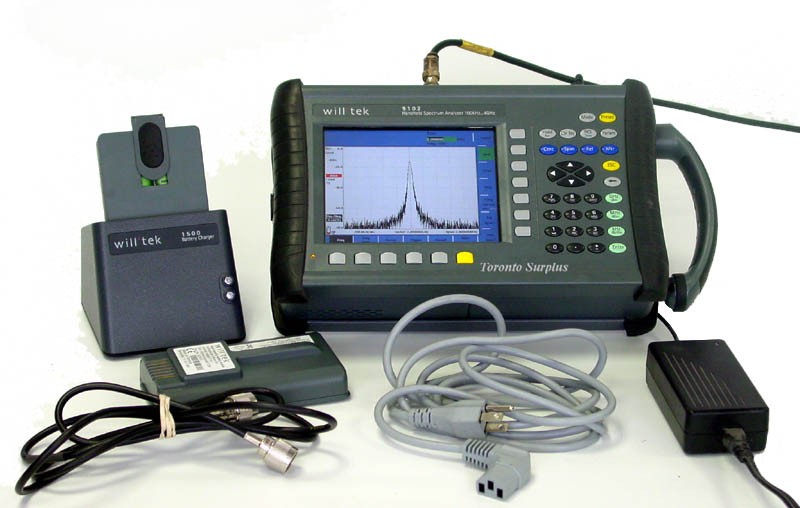

Includes the following:

Willtek 9102 Spectrum Analyzer, Battery, Battery Charger with AC-DC Power Adapter, Type-N male Coaxial Cable, and Soft Case.

Display (TFT)

Size= 6.5''
Brightness= 300 cd
Resolution= 640 x 480, 256 colours
Measurement result points= 2 x 501

Power supply

DC voltage, external
11 to 15 V / max. 28 W

 Frequency

Frequency range

Measurement range- 100 kHz to 4 GHz,  Resolution- 1 kHz

Sweep time
 Span > 10 kHz
 1 ms to 250 s

Span = 0 Hz
 1 ms to 250 s

Resolution bandwidth (RBW)
RBW (-3 dB) range 100 Hz to 1 MHz (RBW selection manual or automatic)

Video bandwidth (VBW)
VBW range (-3 dB) 10 Hz to 1 MHz (VBW selection manual or automatic)

SSB noise
< -80 dBc/Hz (f = 2 GHz, Δf = 100 kHz, RBW = 10 kHz, VBW = 1 kHz)


Amplitude
Measurement range
Averaged noise floor to 20 dBm

Display units
dBm, dBµV, dBmV, dBV, dB

Displayed average noise level (DANL) (RBW = 100 Hz, attenuation = 0 dB)

10 to 1000 MHz
 < -127 dBm,
typ.-130 dBm

1000 to 4000 MHz
 < -130 dBm,
typ.-135 dBm

Input attenuation
Setting range:  0(10) to 50 dB
Attenuation steps: 10 dB


Dynamic range
Range > 70 dB
Max. measurable input level (attenuation = 40 dB)  20 dBm
Min. measurable input level:  -130 dBm


Level accuracy
10 to 3600 MHz :      ±1 dB

RF input match (1 to 4000 MHz, input attenuation = 10 dB)

VSWR:  < 1.6, typ. < 1.5
Return loss:  < -12 dB

Spurious response
 Image rejection (f = 1 GHz):  > 80 dB
LO breakthrough (attenuation = 10 dB): < -77 dBm
Spurious level (attenuation = 0 dB): < -90 dBm
Intermodulation-free range: >63dB
(input level -30 dBm, f1 = 990 MHz, f2 = 992 MHz)

Additional specifications available upon request
