Product Description

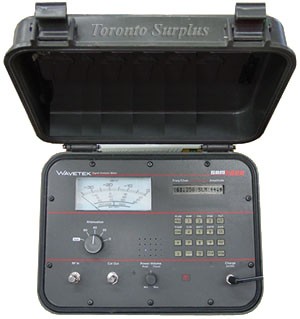

This unit offers: Keyboard controlled synthesized frequency or channel tuning for quickness and accuracy, Tuning and measurements result information clearly displayed on LCD with analog meter for peaking, Auto-ranging or manual attenuator for quick accurate measurements, Automated test functions permit efficient time-saving amplifier alignment.
Frequency: 50-557.875 MHz
Format: User selectable (keyboard) - NCTA Standard, HRC, IRC & Jerrold
Tuning Accuracy: +35 kHz all temperature ranges
Level Measurement Range: -35 to +60 dB
Tuning Increment: 6 MHz (channel mode), 125 kHz (frequency mode)
IF Bandwidth: 280 +50 kHz at 3 dB point
Selectivity: Sufficient to distinguish 2 FM signals of equal amplitude 600 kHz apart. Sufficient to measure audio carrier in presence of upper channel video carrier 40 dB greater in amplitude.
Battery Not Included.
