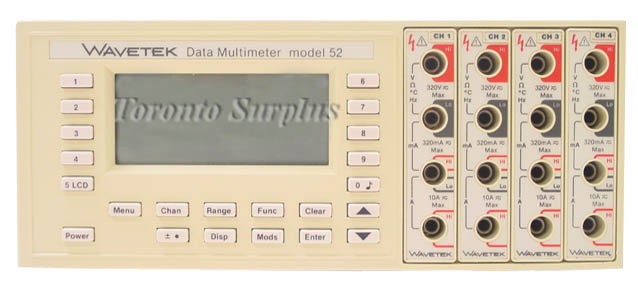

Wavetek 52 Datalogger / Multimeter Mainframe Only, Options/Modules Sold Separately

 SPECIFICATIONS (WITH APPROPRIATE OPTIONS/MODULES)

• DC Volts
  Ranges: 30mV, 300mV, 3V, 30V, 300V
• AC Volts (RMS AC and RMS AC + DC)
  Ranges: 30mV, 300mV, 3V, 30V, 300V
• dB Measurements
• Temperature: thermocouple linearizations provided by software (not icluded) for types J, K, E, T, B, S, R.  Linearizations for 385 and 392 100 ohms platinum RTD's.
• Ohm Ranges: 30, 300, 3k, 30k, 300k, 3M, 30M
• High Megohms Ranges: 300M, 3000M
• Diode Test
• Continuity
• DC Current Ranges: 30mA, 300mA, 3A, 10A
• AC Current Ranges: (True RMS, Shunt DC Coupled): 30mA, 3A, 300mA, 10A
• Frequency Ranges (Hz): 10, 100, 1k, 10k, 100k, 1M, 4M
• Events (Totalize)
• Period Range: 100 µs, 1000µs, 10ms, 100ms, 1000ms
• Pulse Width, Time Interval Ranges: 100ms, 1000ms, 10s, 100s, 360s
• Logic
• AC Volt-Amperes, DC Watts
• Printer: model 54 printer/plotter
• RS-232 C Serial Port
• Data Memory: up to 12,000 readings
