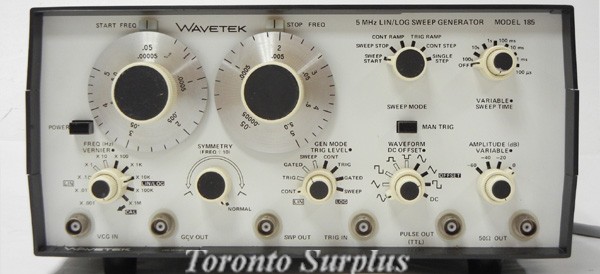

Product Description
- Frequency Range:
- 0.0001 Hz to 5 MHz in 10 overlapping linear ranges
- 0.005 Hz to 5 MHz in 5 overlapping logarithimic ranges
- Dial and verner gives 3 decades of frequency per linear range and 5 decades per logarithmic range.
- Waveforms: Sine, square, triangle, positive pulse, negative pulse, ramp & dc
- Operating Modes: Continuous output, Triggered waveform cycle, Gated bursts of Cycles
- Sweep Time: 100us to 100s
- Sweep Width: Linear to 1000:1, Logarithmic 100,000:1 in its upper five ranges
- Output Amplitude: 20 V Peak to Peak Output with 80 dB attenuation control
