Product Description
From Manufacturer

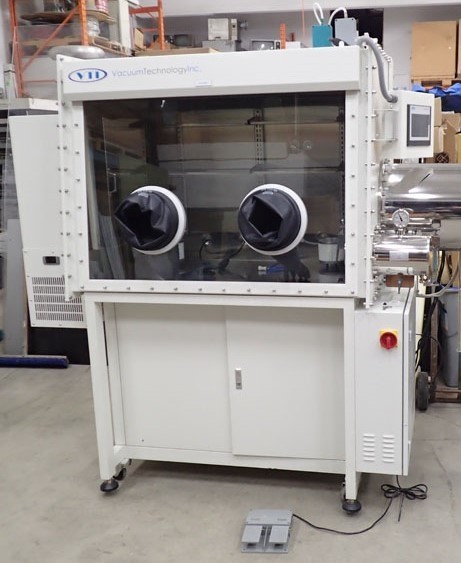

This single workstation system features an integrated gas purification
system (Single Purifier-MK100), a PLC controller with touchscreen HMI, an
electronics enclosure, large and small antechambers, replaceable
flange window, and a vacuum pump.
Attainable purity of this system is H2O < 1ppm, O2 < 1ppm.
Function Highlights
Closed Loop Gas Circulation
Inert gas is maintained in a closed loop
and continuously circulated through the blower and purifier. This allows
for the continuous removal of water and oxygen, maintaining levels of less
than 1ppm for both.
Auto Purging
The glovebox atmosphere is automatically replaced with
inert gas from the gas tank by activating the purge valves.
Automatic Regeneration
The purifier material for absorbing moisture
and oxygen can be periodically regenerated to restore its adsorption
capacity, with the entire process controlled by a PLC.
Pressure Control in the Glovebox
The glovebox pressure is
automatically regulated by a PLC within the set range of +15 mbar to
15 mbar
ECO Mode
The vacuum pump transitions to standby mode after a
period of inactivity and reactivates automatically as required.
The blower frequency modulates to 15Hz when both moisture and
oxygen drop below 1 ppm.
Specifications (See placard)
Type - Super(1220/750/900)
Moisture - <1ppm
Oxygen - <1ppm
Pressure in box - ±10mbar (relative pressure)
Working gas - Nitrogen, Argon or helium
Regeneration gas - Working gas and H2 Mixture (H2 5-10%)
Working temperature - 20-25°C
Source - AC 110, 50/60Hz single phase
Power - Max 1.2KW
Gloves: North (by Honeywell) 8B1532 size 8 1/2 access gloves (undamaged)
*has native operating system
Cosmetic notes
Trace dust and scuffing on surface from previous use, cosmetic in nature, see pictures. We have more than one, so you may not get the exact item pictured, but they are all in similar cosmetic condition. If you would like to receive pictures of the exact unit/units you will receive please send us a request.
Tested and Functional Notes
This item is TESTED & WORKING, as pictured. See above for any additional notes.
