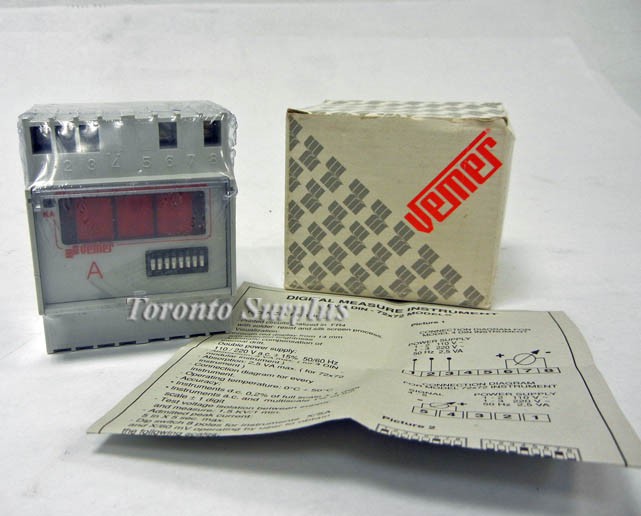

Product Description
Technical Features:
- Printed Circuits realized in FR4 with solder - resist and silk screen process.
- Visualization through red disp[lay from14mm with selected brightness.
- Auotmatic compensation of thermal drift.
- Double Power supply: 110/220V AC ±15% 50/60 Hz
- Absorption 3 VA max ( for 4 DIN modular instrument )
- Absorption 2,5 VA max ( for 72 x 72 instrument )
- Connection Diagram for every instument.
- Operating temperature 0°C + 50° C
- Instruments d.c. 0,2% of full scale ± 1 digit
- Instruments a.c. and multiscale 1% of full scale ± 1 digit
- Test voltage isolation between supply and measure 1,5 KV/1 min
- Admitted peak Current 5 In 5 sec max
- Dip switch , 8 poles for instruments X/5A and X/60 mV operating by user to obtain the following scales:
- X5/A on TA 15 -25 -50 -60 -100 - 150 -250 -500 -600 -1000A
- 1,5 - 2,5 -5-6 -10 KA
