Product Description

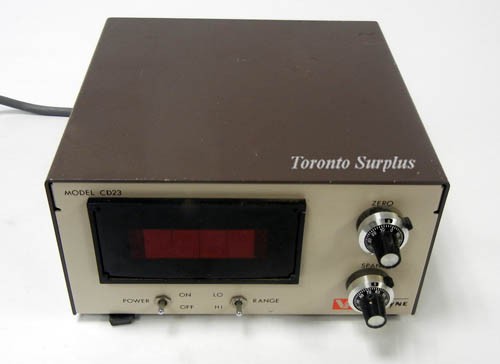

Validyne CD23 DC Output Digital Transducer Sensor
Designed for use with variable reluctance and differential transformer transducers
Provides 5 Vrms, 5 kHz carrier excitation voltage to the transducer(s) and solid state circuitry to amplify, demodulate and filter the transducer output signals
In addition, a high level DC Analog Output Voltage is provided, based on 1.0 Vdc output per 100 digit display counts, or 10 Vdc full-scale and 1000 counts on the display. To provide maximum flexibility, the standard display is set to read in precent of full-scale (±100.0% for normal full-scale indication), permitting use with transducers of different pressure ranges and units while retaining the resolution of the full 10 Vdc analog output and 1000 digit counts
