The Model 8550 and Model 8551 Q-TRAK IAQ monitors measure CO 2, temperature, and relative humidity.

The Q-TRAK has four modes of operation, Survey, LOG 1, LOG 2, and LOG 3. When the Q-TRAK
is first turned on it will be in Survey mode which is used to display real-time readings and to determine statistics such as average, minimum, and maximum readings. LOG 1 mode is used to record individual data points for later analysis using a factory set protocol.

INCLUDES:

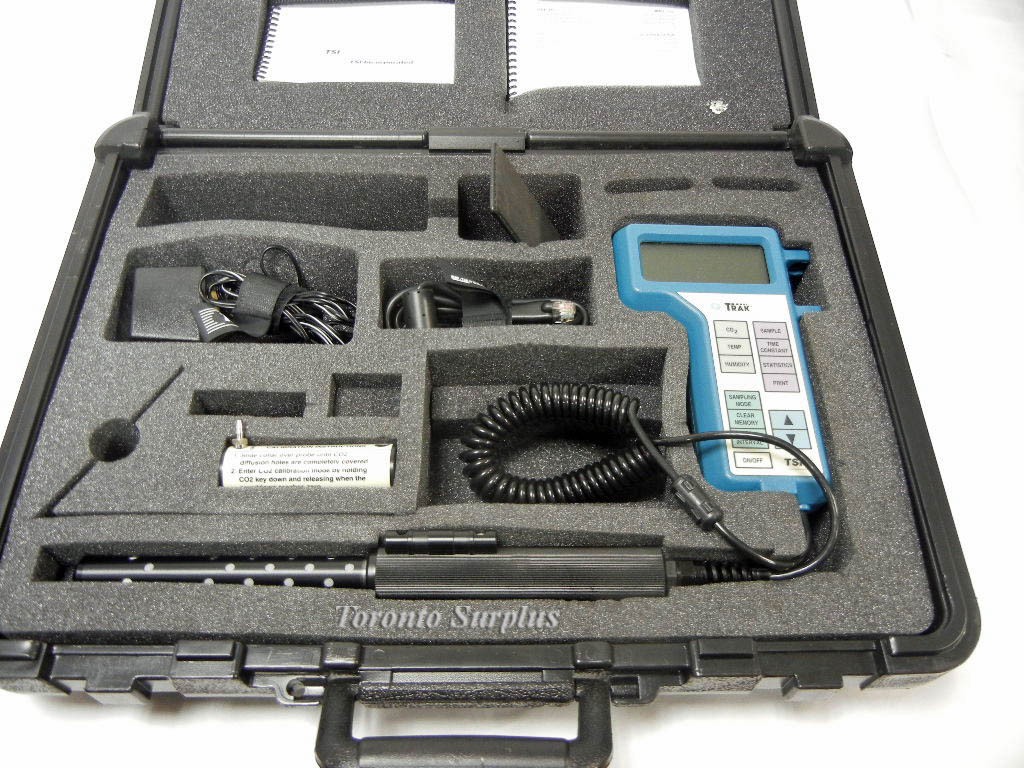

8550 Q-Trak IAQ Monitor with AC Adaptor, Probe Stand, CO2 Calibration Collar, Computer Interface Cable, Manuals in Hard Shell Carrying Case

Software, calbrations gas etc not included


Models 8550 Q-TRAK Specifications (for reference only)

Carbon Dioxide:
Sensor type               Non-Dispersive Infrared (NDIR)
Range                        0 to 5000 ppm
Accuracy                    ±3% of reading, ±50 ppm
Resolution                 1 ppm
Response time         20 seconds

Temperature:
Sensor type               Thermistor
Range                       32 to 122°F (0 to 50°C)
Accuracy                    ±1.0°F (0.6°C)
Resolution                0.1°F (0.1°C)
Response time        120 seconds
Displayed units       °F or °C (user-selectable)

Humidity:
Sensor type              Thin-film capacitive
Range                       5 to 95% RH
Accuracy                    ±3% RH
Resolution                0.1% RH
Response time        20 seconds

Instrument Temperature Range:
Operating range         41 to 113°F (5 to 45°C)
Storage range             -4 to 140°F (-20 to 60°C)

Display Time Constant: Adjustable from 2 to 60 seconds

Data Logging:             63,000 data points (10 days of logging CO, CO2, temperature, and humidity once/minute)

Logging Interval:          Adjustable from 1 second to 1 hour

Physical:
External dimensions     4.2 in x 7.2 in x 1.5 in
Probe:                               5.4 in x 0.75 in diameter
Weight (with batteries- NOT included) 1.3 pounds (0.59 kg)
Display                            4-digit LCD, 0.6 in (15 mm) digit height

Serial Interface:              RS-232, 1200 baud

Power:
     AC                                AC adapter (included)
     Battery                         Four AA-size batteries (NOT included)

TRAKPRO Data Analysis Software NOT included
