Product Description

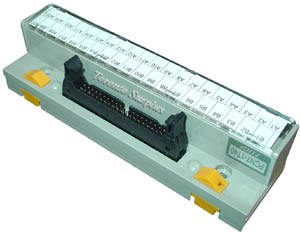

The junction terminal blocks, combining terminal block with connector, are best suited as interface for sequencers (PLC) or computers. The printed circuit board connecting the terminal side and connector side eliminates the possibility of mistake for wiring. The rail mounting type, which satisfies the DIN(35) requirements, can be installed on the same rail with other equipment.
13 in stock"
- FEATURES:
- The slim body is only 40mm wide so it perfectly fits the 35mm width of the DIN rail.
- The terminal No's are connected one for one with the connector No's so that there is much freedom in circuit design.
- The new screw type greatly facilitates connecting work
- It has a lever system for easy installation and removal from the rail
- The PCN series can be mounted either on the rail or directly on the surface
SPECIFICATIONS:
- Terminal Pitch: 7mm
- Rated voltage: AC/DC125V
- Rated current: 1A
- Withstand voltages: 600V 1min
- Insulation Resistance: 100Mohm or above
- Wire size: 22-16awg
- Connectors: Omron Electric (as indicated by T in the model)
- Poles: 40
- Size: A x B 149 x 110mm
