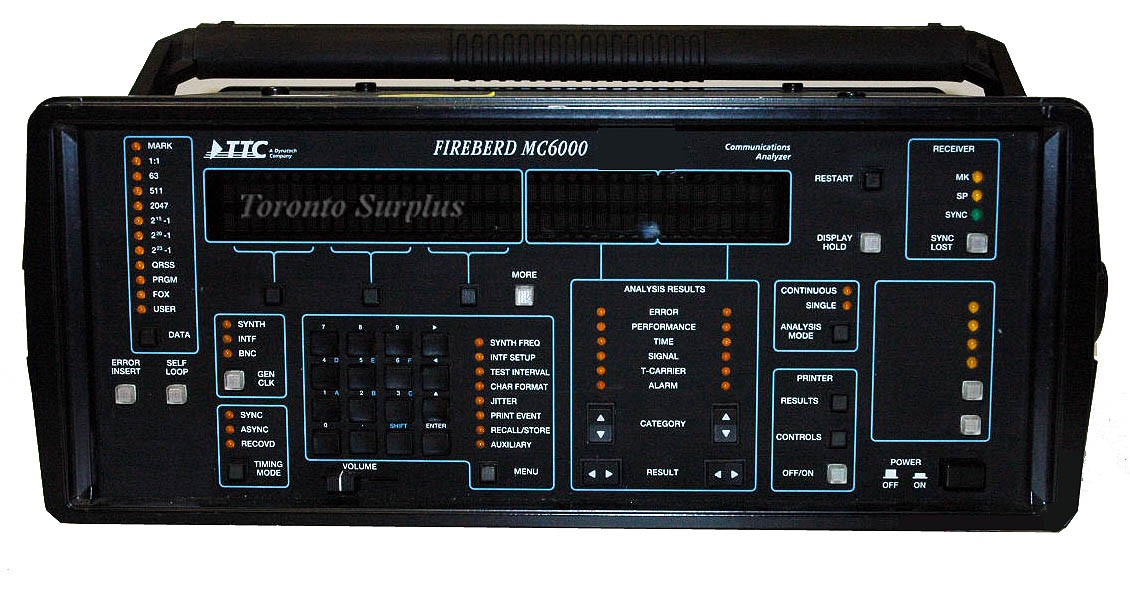

TTC / Dynatech / JDSU / Acterna Fireberd MC6000 Communications Analyzer

The FIREBERD 6000 Communications Analyzer brings advanced testing capabilities to today’s data networks,
enabling you to maximize your testing capabilities and minimize your training costs. Whether your test
requirements include Async or ATM testing, physical layer and data link layer analysis, or generation and measurement of the jitter tolerance of your T1 or 2M circuits, the FIREBERD 6000 gives you the power to analyze most network interfacesfound within your network.

With an intuitive, menu-driven test methodology, the FIREBERD 6000 performs traditional bit error analysis, frame
and cell generation, along with signal, performance and timing measurements. The FIREBERD 6000 is fully
programmable, with customized printouts, programmable user patterns, frequency synthesizer, and user-defined flow control. It’s a great way to protect your network.

Many Capabilities, One Instrument
• Perform bit error, signal and performance analysis on datacom, T1/FT1, 2M/Nx64, DDS, E3 and T3 services
• Perform analog tests with VF and wideband Transmission Impairment Measurement Set (TIMS) tests on analog anddigital transmission lines with the TIMS-45 Lid.
• Complete jitter generation and measurements on T1, 2M and 64 kb/s circuits
• Monitor and generate traffic on ATM and frame relay networks

Customize Your Testing Needs
• Recall up to ten of your most frequently used test scripts with the
push of a button
• Choose the configuration settings that you require and the FIREBERD 6000 filters and prints the results

Save Time with Automation and Remote Testing
• Automate your testing routine with Dynamic Script Generator software
• Maximize your FIREBERD 6000’s ability as a frame relay solution with NetAnalyst.
