Product Description

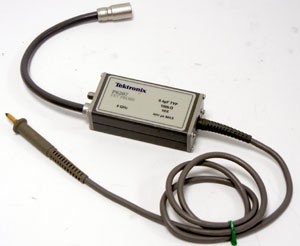

The P6207 Active (FET) Probe is a Low Circuit Loading Signal Acquisition probe for the TDS820 Oscilloscope.
P6207 provides Range: DC up to 4 GHz
Input Capacitance: 0.5 pF (Provides Lower Circuit Loading and the Use of Longer Ground Leads)
Input Resistance: 100 kilohm
Variable DC Offset: ±5 V
Maintains Circuit Biasing Levels
Active Performance with Passive Simplicity
Integral Probe Power TEKPROBE® SMA
Small Geometry Accessibility
True Signal Fidelity
