Product Description

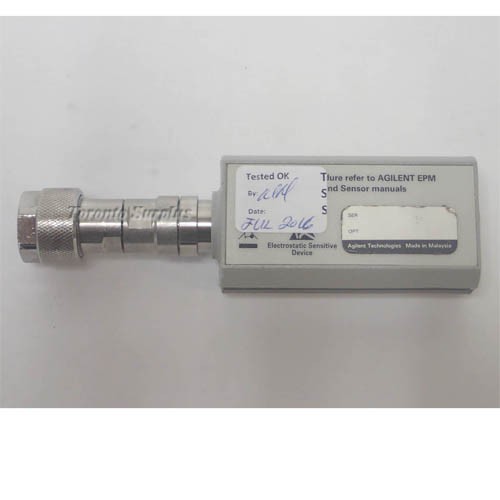

The E4412A diode power sensor, with wide dynamic range, is designed for use with the EPM and EPM-P series power meters for power measurements on CW signals from 10 MHz to 18 GHz. The E4412A power sensor provides extremely low SWR to minimize the source and sensor mismatch errors. Also, for comprehensive error correction, the calibration factors, linearity and temperature error-correction information are stored in EEPROM.
Features:
- Frequency range: 10 MHz to 18 GHz
- Measurement range: 100 pW to 100 mW ( -70 dBm to +20 dBm)
- 50 ohm input impedance
- N (m) connector
- Calibration factors stored in EEPROM
- Compatible with the EPM and EPM-P series power meters
