Product Description
HP / Agilent 41800A Active Probe 5Hz - 500MHz
The 41800A Active Probe probe offers high input impedance from 5 Hz to 500 MHz. It works with many Agilent spectrum analyzers to evaluate the quality of circuits by measuring spurious level, harmonics, and noise. Low input capacitance offers probing with negligible circuit loading for precise, in-circuit measurements of audio, video, HF and VHF bands. Wide Frequency Range 5Hz to 500MHz. High Input Impedance 100kOhm, 3pF. Used for both spectrum and network analyzers

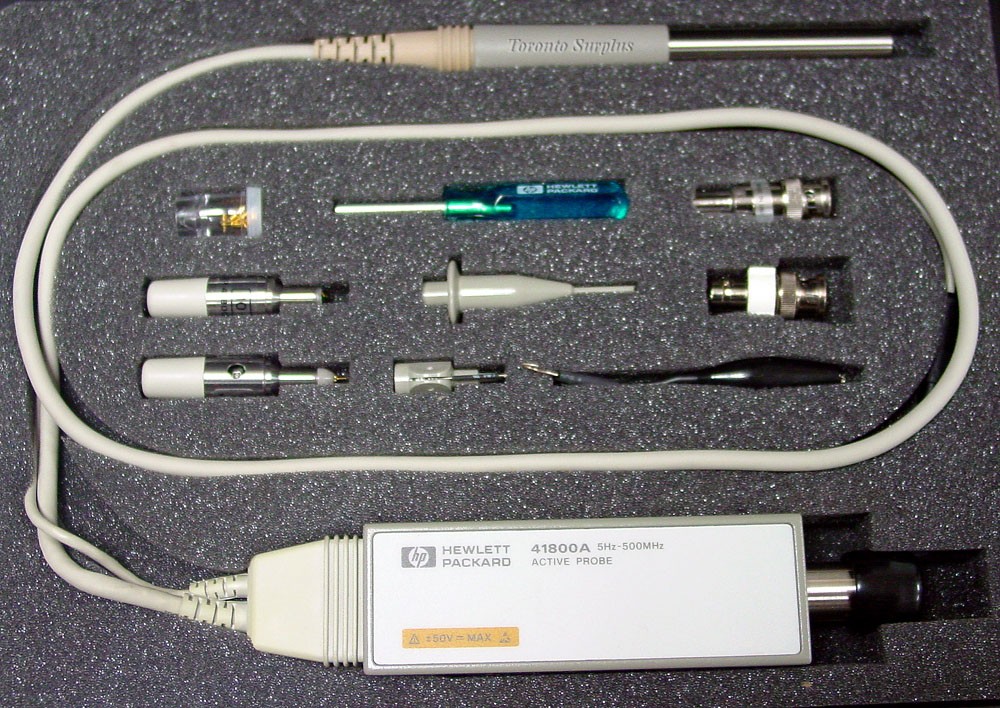

Comes with:
Part # Description
41800-60011 10:1 DIVIDER
41800-60012 100:1 DIVIDER
8710-1806 3/32" NUT DRIVER
01123-61302 ALLIGATOR GROUND LEAD(obsolete use subs part)
41800-60001 CARRYING CASE
5060-0549 GROUND TIP, SLIP ON
10229A HOOK TIP ADAPTER
41800-61001 PROBE ASSEMBLY
41800-60013 PROBE-BNC ADAPTER
41800-60021 SPARE PROBE PIN SET
