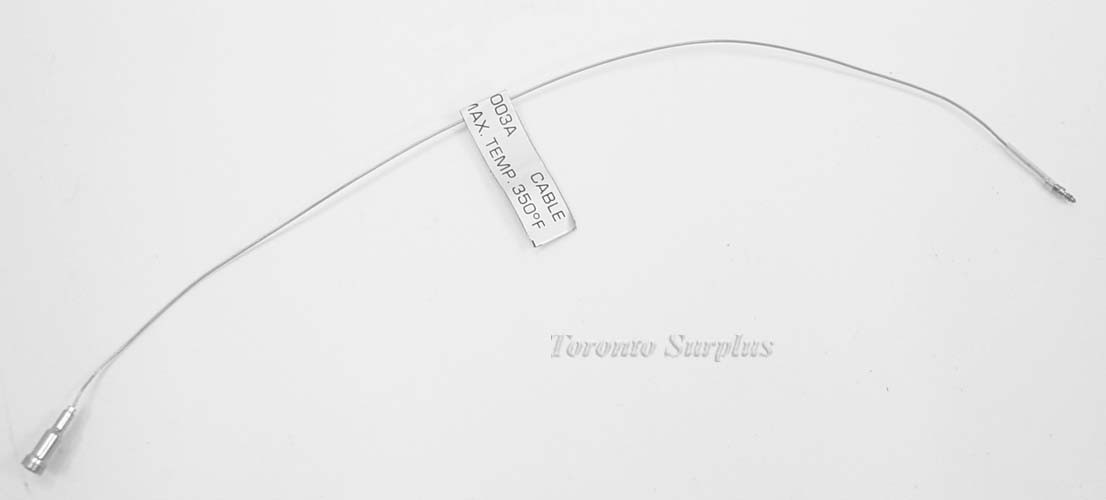

Endevco 3003A-6 Standard Miniature Cable Assembly

Double click on above image to view full picture

More Views

  • Endevco 3003A-6 Standard Miniature Cable Assembly

Endevco 3003A-6 Standard Miniature Cable Assembly


Part Number: sku6533
Contact for price
Add Items to Cart
Quantity in Stock: 1

Ask a Question

Product Description

The Endevco model 3003A is a sub-miniature, low noise coaxial cable assembly designed for use with Endevco models 22 and 23 high impedance accelerometers. It mates with the Endevco 3093A and 3095A series of standard size coaxial cables. The 3003A is a miniature semi-rigid cable with a 1.00 UNM outside thread connector at one end and a 1-64 UNC-2A inside thread at the other. Instructions on installing this cable, which are supplied with model 22 and 23 accelerometers, should be rigidly followed. Model 22 and 23 accelerometers have 3003A-6 (six inch length) cables installed as a standard accessory in addition to a 3095A-120 (10 ft. length).

Features
• for use with high impedance /low impedance
piezoelectric accelerometers
