Product Description

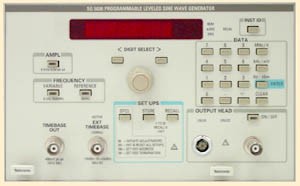

The SG 5030 is the only choice for anyone who needs leveled output amplitude to calibrate analog or digital scopes with bandwidth to 550 MHz - under either local or programmable control.
The leveled output is variable from 0.1 Hz to 550 MHz with a reference of 50 kHz. Crystal -controlled frequency eliminates drift so there's no second-guessing results.
- FEATURES:
- Application: Oscilloscope Bandwidth Calibration
- Frequency: 0.1 to 550 MHz
- Amplitude Range: 4.5 mV to 5.5 V
- Amplitude Flatness: ± 1.5% to ± 4% of 50 kHz Reference Frequency
- 20 Stored Front Panel Settings
Plug-in Only
