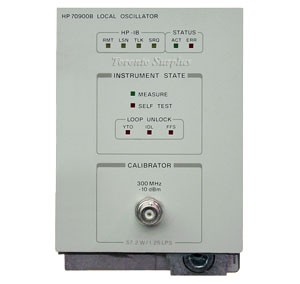

    HP 70900B / Agilent 70900B Local Oscillator for 70000 Series (In Stock) z1

    Double click on above image to view full picture

    More Views

    • HP 70900B / Agilent 70900B Local Oscillator for 70000 Series (In Stock) z1

    HP 70900B / Agilent 70900B Local Oscillator for 70000 Series (In Stock) z1

    Part Number: sku537
    Contact for price
    Add Items to Cart
    Quantity in Stock: 2

    Ask a Question

    Product Description

    The Agilent 70900B is the master control module for the modular spectrum analyzers and surveillance receivers. It is also a component of the lightwave signal analyzers. The Agilent 70900B LO has two main functions in the Agilent 70000 spectrum analyzers: as the synthesized local oscillator (LO) and as the master control module for the system. As a spectrum analyzer local oscillator, it affects phase noise, stability, and frequency accuracy. The Agilent 70900B is the reason that the analyzer has excellent phase noise performance of -108 dBc/Hz at 10 kHz offset from the carrier. The synthesis technique has millihertz resolution for accurate frequency control. The fast tuning speed of the LO directly relates to the tuning speed of the analyzer. As the master control module, the Agilent 70900B determines system features, slave module control, command processing speed, and GPIB speed. The combination of hardware and processing power provides fast tuning for surveillance applications and automatic testing.

    • 100 MHz IN:
      Frequency: 100 MHz
      Power required: 0 dBm ±3 dB
      Impedance: 50Ω (nominal)
    • 300 MHz OUT:
      Frequency: 300 MHz
      Power: 0 dBm ±1 dBm
      Impedance: 50Ω (nominal)
      Frequency Accuracy (specification): 300 MHz x frequency reference error
      Power (specification): -10 dBm ±0.3 dBm
      Impedance: 50Ω (nominal)
      Line Type: TTL Positive Edge 2 TTL loads
    • HSWP IN/OUT:
      Line Type: TTL (open collector)
      Sweep condition: low = not ready to sweep
      Maximum Delay: 200 µs from HSWP high to sweep
      Maximum Current Draw: 16 mA
    • LO OUT:
      Frequency: 3.0 GHz to 6.6 GHz
      Power: +7 to 15 dBm
      Impedance: 50Ω (nominal)
    • SWEEP:
      Range: 0 to 10 V
      Accuracy: 2%
    • TUNE + SPAN OUT:
      Range: 4.5 to 9.9 V
      Sensitivity (for LO signal): 1.5 V/GHz
    • VIDEO IN:
      Range: 0 to 2 V
