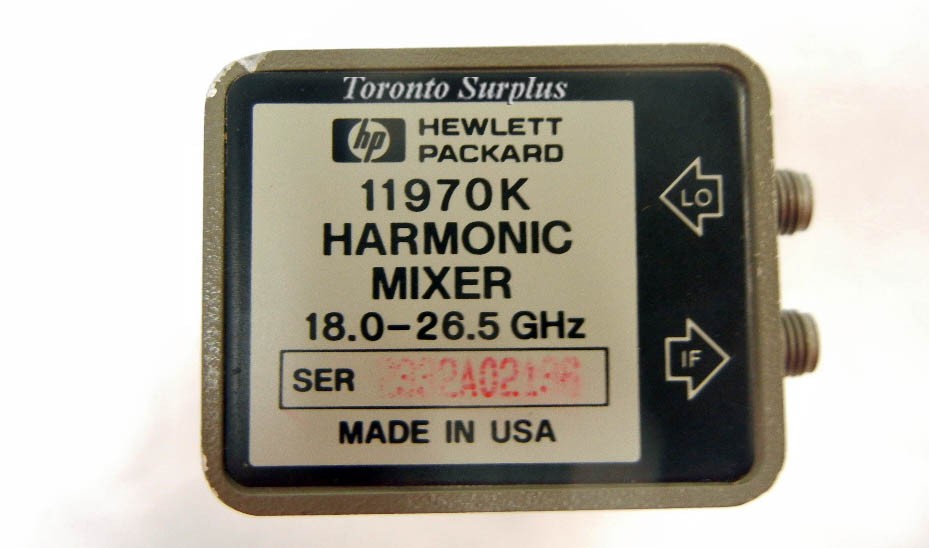

    HP 11970K / Agilent 11970K Harmonic Mixer 18.0 - 26.5 GHz, +20dbm AVG


    Part Number: sku10566
    Contact for price
    Add Items to Cart
    Quantity in Stock: 2

    Ask a Question

    Product Description



    The 11970K extends the frequency range of the Agilent E4407B ESA-E series portable spectrum analyzer, the Agilent 8560 E-series portable spectrum analyzers, the Agilent 8566B spectrum analyzer (used with the Agilent 11975A amplifier), and the Agilent 70000 modular measurement system (used with the Agilent 70907A/B external mixer interface modules).


    • F range: DC to 1300 MHz
    • Frequency range: 18 to 26.5 GHz
    • LO amplitude range: +14 to +18 dBm
    • LO harmonic number: 6-
    • Maximum CW RF input level: +20 dBm (100 mW)
    • Maximum peak pulse power: +24 dBm (250 mW)
    • Spectrum analyzer noise (1 kHz BW): -105 dBm
    • Typical gain compression: -3 dBm
    • Flat frequency response of ±1.9 dB
    • Low conversion loss of 24 dB maximum
    • No bias or tuning adjustments
    • 100 mW safe input level
    • Rugged, and easy to use
