Product Description

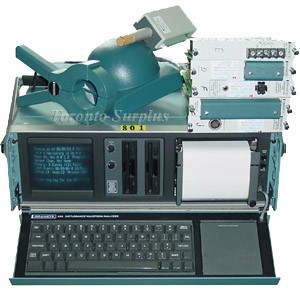

The 656 is for monitoring power line disturbances using programmable trigger thresholds. It shows the results on the CRT display or records on non-volatile RAM.
- FEATURES:
- DOS compatible RS-232C port
- 2 x 3.5" Floppy Drives (software not included)
- On-Board Printer
- Touch Sensitive CRT.
WHAT IS INCLUDED: - 656 Analyzer
- 4 x Input Channels - Voltage/Current 0-600 VRMS 50/60 Hz (all 4)
- 656-PA-1001 - Transducer Module
- 626-PA-6020 - Broadband R.F. Monitor
- 626-PA-6024A - Harmonic Analyzer
- 626-PA-6008 - Temperature and Humidity Monitor
- 626-PA-6002A - D.C. Monitor
- 626-PA-6002C - D.C. Monitor
- LM111926G1 - Antenna Unit (part of 626-PA-6020)
- 111730G1 - AC/DC Clamp-On AmmeterCurrent Probe / TR2018 (2" diameter Aperature)
- 111061 - Humidity Probe for 626-PA-6008
- 110540 - CPU/COMM Interface Cable
- 11059 - Temperature Probe
- Dranetz Carry Bag
Power Requirements: 90-250 VRMS 40-440 Hz 100 W max. "
