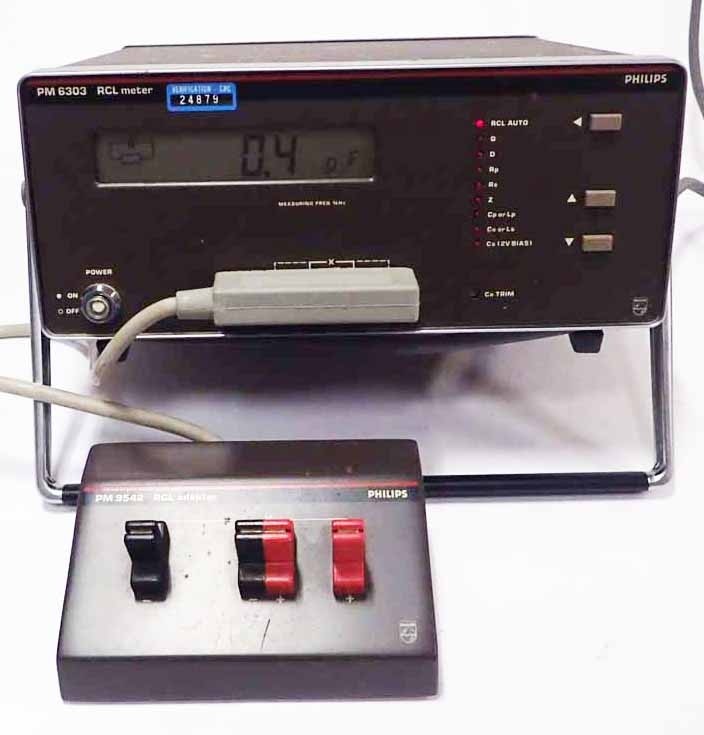

The PM6303 automatic RCL meter will rapidly determine the value, electric dimension and equivalent - circuit of passive components to a very high order of accuracy, over a wide range. The measure value, together with the appropriate unit of measurement and the equivalent circuit-graphics are easily read on a large 4 digit LCD.

SPECIFICATIONS:
• Display: Lg 18mm 4 digit LCD
• Dimension Indications: Ohm kOhm MOhm pF nF µF mF µH mH H kH
• Out of Range Indication: 4 middle digit segments flashing
  Measuring Ranges:
• Resistance: Rp Rs Z 0.000 Ohm to 200 MOhm
• Capacitance: Cp Cs 0.0 pF to 100 mF
• Inductance: Lp Ls 0.0 µH to 32 kH
• Quality Factor: Q 0.002 to 500
  Maximum Resolution: 1 mOhm 0.1 pF 0.1 µH

Made in Germany.
