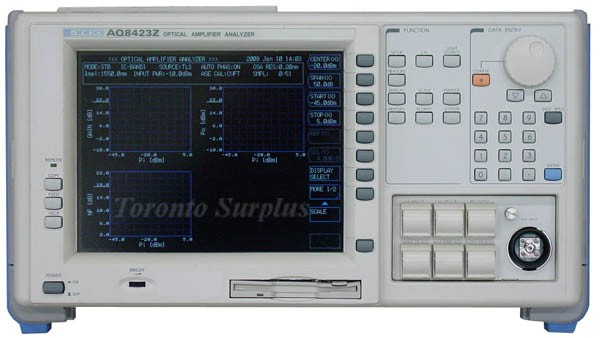

    Ando AQ8423Z Optical Amplifier Analyzer with AQ9389B FC Connector Adapter

    Double click on above image to view full picture

    More Views

    • Ando AQ8423Z Optical Amplifier Analyzer with AQ9389B FC Connector Adapter

    Ando AQ8423Z Optical Amplifier Analyzer with AQ9389B FC Connector Adapter (In Stock) z1


    Part Number: sku5547
    US$8,975.00
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Description

    The Ando AQ8423Z is a unique dual-range Optical Amplifier Analyzer. In conjunction with an external Optical Spectrum Analyzer (typically Ando AQ6317C) and light sources (such as tunable laser sources or DWDM-DFBs), the Ando AQ8423Z can measure gain and noise figure (NF) of optical amplifiers both in C-band and L-band. Two testing wavelength ranges can be switched internally by simple operation.

      SPECIFICATIONS:
    • Wavelength Range: C-Band mode (1520 ~ 1580 nm) L-Band mode (1560 ~ 1620 nm)
    • DUT Input Power Range: -45 dBm ~ +10 dBm
    • DUT Output Power Range: +24 dBm or less
    • Gain Accuracy: ±0.2 dB
    • NF Accuracy: ±0.3 dB
    • Display: 9.4-inch Color LCD
    • Calibration Function: Internal Self Calibrating Function
    • Applicable Fiber: Single mode 10/125 um

    Complete specifications available upon request.
