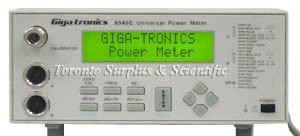

Product Description
The Giga-tronics 8540C Series Universal Power Meters combine accuracy, speed, range and measurement capabilities unavailable from any other power meter. Built-in features such as power sweep calibration and frequency calibration provide an unequalled degree of measurement accuracy. Only the 8540C Series power meters have the speed and range to meet the throughput demands of high volume manufacturing. And the meters can measure the CW, peak and true average power of the complex modulated signals used in EW, radar, and communications systems.
- SPECIFICATIONS (Depending on sensor used - Sensor NOT Included):
- Frequency Range: 10 MHz to 40 GHz
- Power Range: -70 dBm to +47 dBm (100 pW to 50 Watt)
- Single Sensor Dynamic Range:
- CW Power Sensors: 90 dB
Peak Power Sensors: 40 dB Peak / 50 dB CW
Modulation Power Sensors: 87 dB CW / 80 dB MAP/PAP / 60 dB BAP - Display Resolution: User selectable from 1 dB to 0.001 dB in Log mode and from 1 to 4 digits of display resolution in Linear mode.
Complete specifications available upon request."
