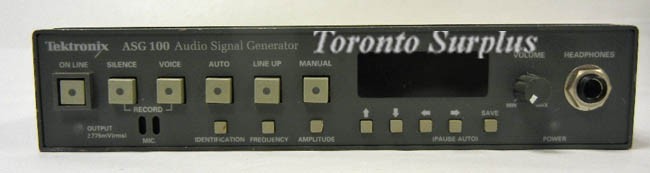

The two-channel ASG100 is for situations where the generator is inserted in-line with the audio path of interest. When used in this fashion, the ASG100 can insert a variety of test signals into the audio program. The output impedance is programmable, allowing it to be used with either power-matched or voltage-driven signal distribution schemes.

Common Features:


•     20 Hz to 20 kHz
•     24 dBu to -90 dBu
•     4 Second Voice ID
•     Balanced XLR Signal Paths

Controls:


•     RS-232 Remote Control
•     Front Panel Lockout
•     Contact Closure

Special Measurement Signals:


•     Multitone Test Signals
•     Audio/Video Delay Signals
•     CCITT 0.33 Signals
•     Tektronix Autosequences

    Balanced, Loopthrough Operation
    Programmable Output Impedance
