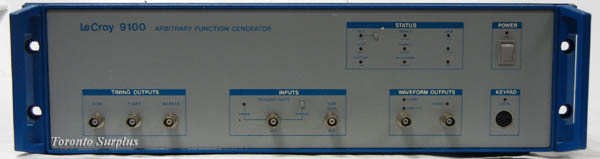

LeCroy 9100 Arbitrary Function Generator

115/220VAC +/- 20%, 47-63Hz,  Approx. 147 Watts

The 9100 is a signal source whose output voltage as a function of time can be programmed via an array of data values and various control settings. The instrument generates the waveform by sequentially stepping through the array and outputting a volt-age proportional to each data value for a fixed time interval or sample period (point). Selecting or specifying the contents the data array are performed separately from entering the control settings
commands so the user has a great deal of flexibility in modifying a waveform without having to change its basic shape (the waveform data array).

The LeCroy 9100 Series Arbitrary Function Generators (AFG) are high performance ATE or benchtop instruments which can generate either standard or user-defined, complex waveforms with unparalleled point-to-point resolution. They are fully programmable via either GPIB or RS-232. Waveform creation and editing software is offered for PC-DOS compatible computers.
