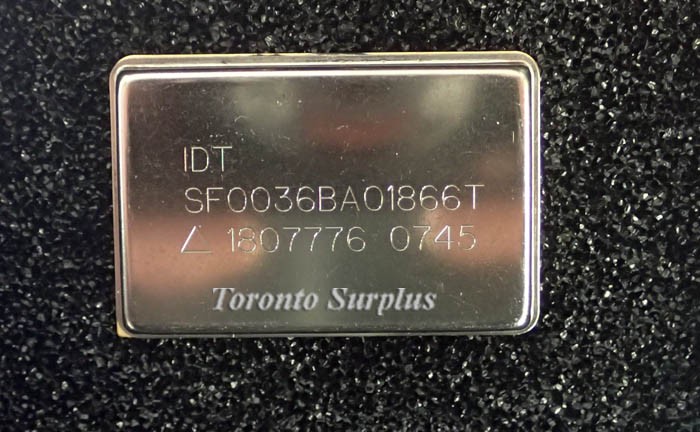

Product Description
These SAW (surface acoustic wave) VSB (Vestigial Sideband Filters) filters address the needs of broadcast
and cable TV applications. These VSB filters (VSFs) are designed for television signal IF (intermediate
frequency) filtering, with some models providing high suppression of the audio carrier while other models
pass the audio carrier without attenuation. The excellent linear phase characteristics and low group
delay ripple of these VSFs yield superior 2T and 20T pulse performance. These SAW VSFs provide superior
in-band performance while maintaining high rejection of adjacent channels
APPLICATIONS
•CATV (Cable TV) Headend Modulators/Combiners
• Television Transmitters/LPTV
• HDTV IF processing
• Satellite and terrestrial distribution
• Broadcast/CATV systems
• Adjacent channel suppression
FEATURES
• Exceptionally low amplitude and group delay ripple
• Worldwide broadcast standards supported
• Available at standard video intermediate frequencies
