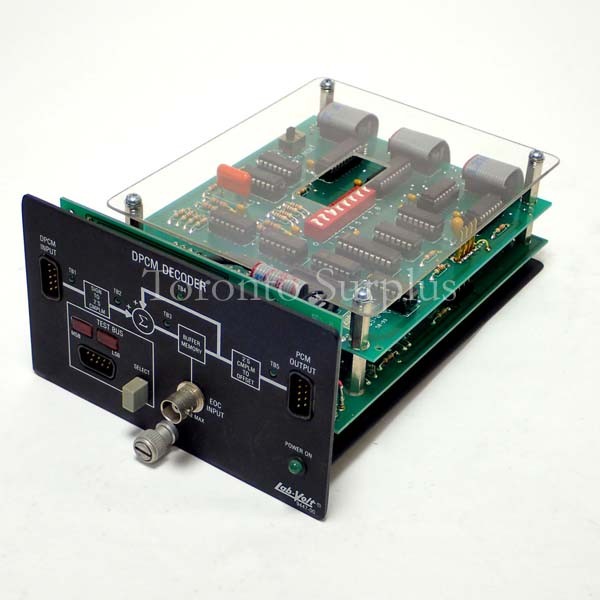

    Lab-Volt / LabVolt 9447-00 DPCM Decoder

    Double click on above image to view full picture

    More Views

    • Lab-Volt / LabVolt 9447-00 DPCM Decoder
    • Lab-Volt / LabVolt 9447-00 DPCM Decoder
    • Lab-Volt / LabVolt 9447-00 DPCM Decoder
    • Lab-Volt / LabVolt 9447-00 DPCM Decoder

    Lab-Volt / LabVolt 9447-00 DPCM Decoder for Digital Communications Training Systems - Training / Education


    Part Number: sku12795
    Contact for price
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Description

    The DPCM Decoder is converts the less than 8-bit parallel DPCM signals from the DPCM Decoder to an 8-bit PCM signal. This PCM signal is then fed to the parallel input of the PCM Decoder to recover the original analog signal.  Using the DPCM Decoder, students gain an understanding of the more complex processes involved in DPCM decoding and the effects of noise on DPCM transmissions.

    Specifications

    Power Requirements:
    Connection to the Enclosure / Supply Regulator, Model 9420 (not included)
    Inputs: Less than 8-bit parallel DPCM end of conversion (from PCM Encoder)
    Output: 8-bit parallel PCM

    Input/Output
    Voltages: TTL
    Fault-Insertion Switches: 8
    Test Busses: 5

    Physical Characteristics
    Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
    Net Weight 0.9 kg (2.0 lb)
