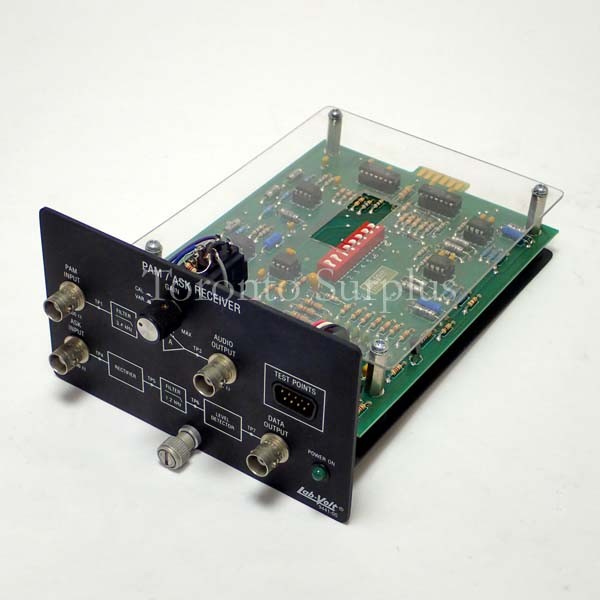

The PAM/ASK Receiver demodulates PAM or ASK signals from the PAM/ASK Generator to recover the original analog signals or data. Using the PAM/ ASK Receiver, students become familiar with techniques used in the demodulation of PAM and ASK signals.

Specifications

Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)

PAM / ASK Inputs
Voltage: 2 V p-p
Impedance: 600 Ω
Maximal ASK Data Rate: 1200 Bd

Audio Output
Nominal Voltage: 2 V p-p with 2 V p-p input (gain control at CAL position)
Maximal Voltage: 10 V p-p
Impedance: 600 Ω
Frequency: 3.4 kHz

Data Output
Voltage: TTL


Fault-Insertion Switches: 8

Test Points: 7

Physical Characteristics
Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
Net Weight 0.7 kg (1.5 lb)
