    Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator

    Double click on above image to view full picture

    More Views

    • Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator
    • Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator
    • Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator
    • Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator

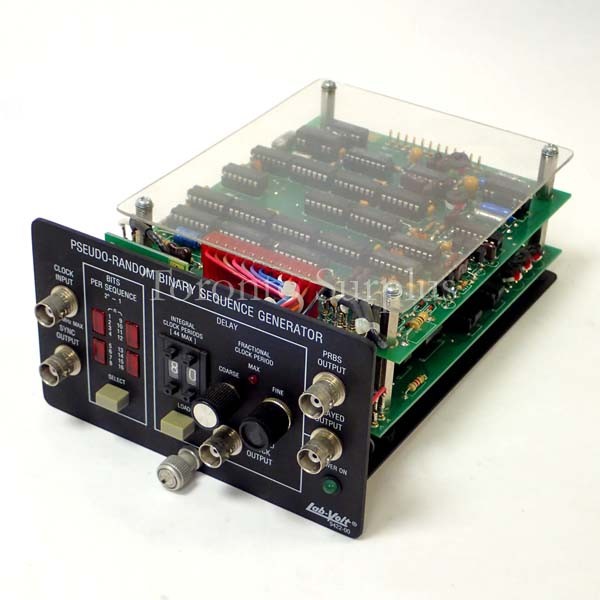

    Lab-Volt / LabVolt 9422-00 Pseudo-Random Binary Sequence Generator for Digital Communications Training Systems - Training / Education


    Part Number: sku12809
    Contact for price
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Description

    The Pseudo-Random Binary Sequence (PRBS) Generator designed to be used with the Bit Error Rate Indicator, Model 9423 (not included), to measure the reliability (error rate) of different digital transmission systems.

    Using an external clock, the PRBS Generator produces a pseudo-random sequence of bits. The bit rate can be varied from 100 bps to 5.44 Mbps. The length of the pseudo-random sequence of bits is selected through a switch and is indicated on the front panel of the module. Sixteen sequence lengths are available between 1 and 65,535 bits. One of the sequences is 511 bits long, thus meeting with recommendation V.52 of the CCITT. The generated pseudo-random bit sequence recurs indefinitely. The generator produces a synchronization signal for oscilloscope observation of the PRBS.

    A delayed PRBS is required when assessing the reliability of a digital transmission system. The delay of the PRBS must match that caused by the digital transmission system under test. For this purpose, the PRBS can be
    delayed by a fraction of a bit (fraction of a clock period) or by a whole number of bits (whole clock periods) using controls located in the DELAY block of the module.

    Specifications

    Power Requirements: Connection to the Enclosure / Supply Regulator, Model 9420 (not included)

    Clock Input
    Frequency: 5.44 MHz maximum

    PRBS: PRBS
    Delayed PRBS (0 to 45 clock periods): Delayed PRBS (0 to 45 clock periods)
    Delayed Clock: Delayed Clock
    Sync.: Sync.

    PRBS Length:
    1 bit to [2^16]-1 (= 65,535 bits)

    Physical Characteristics
    Dimensions (H x W x D) 83 x 142 x 212 mm (3.3 x 5.6 x 8.3 in)
    Net Weight 1 kg (2.2 lb)
