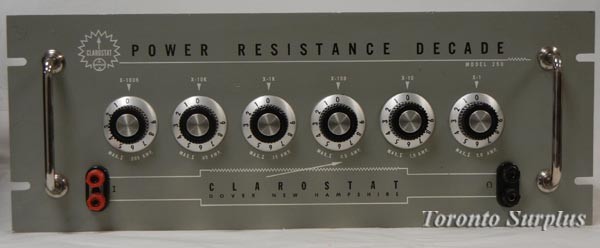

    Clarostat 250 Power Resistance Decade Box, 1 to 999,999 ohms in 1 ohm increments

    Double click on above image to view full picture

    More Views

    • Clarostat 250 Power Resistance Decade Box, 1 to 999,999 ohms in 1 ohm increments

    Clarostat 250 Power Resistance Decade Box, 1 to 999,999 ohms in 1 ohm increments


    Part Number: sku10129
    Contact for price
    Add Items to Cart
    Quantity in Stock: 2

    Ask a Question

    Product Description

    The 250 Power Resistance Decade provides a power resistor of any required ohmage from 1 to 999,999 ohms in 1 ohm increments. The ohmage is selected or determined by six from panel dials, and the value is read directly - in sequence - from the dials, thereby simplifying the selection of known or unknown resistances for use in working circuits. Tolerance: Decade #1 - 5%; Decade #2-#6 - 2% Power Rating: Dissipates up to 225 watts max. or 1000 volts DC, or 660 volts AC, max. per decade Maximum Current Ratings: Decade #1 - 5.0amp; Decade #2 - 1.5amp; Decade #3 - 0.5amp; Decade #4 - 0.15amp; Decade #5 - 0.05amp; Decade #6 - 0.005amp - See more at: http://www.testequipmentconnection.com/5245/Clarostat_250.php#sthash.he1w1KrO.dpuf
    The 250 Power Resistance Decade provides a power resistor of any required ohmage from 1 to 999,999 ohms in 1 ohm increments. The ohmage is selected or determined by six from panel dials, and the value is read directly - in sequence - from the dials, thereby simplifying the selection of known or unknown resistances for use in working circuits. Tolerance: Decade #1 - 5%; Decade #2-#6 - 2% Power Rating: Dissipates up to 225 watts max. or 1000 volts DC, or 660 volts AC, max. per decade Maximum Current Ratings: Decade #1 - 5.0amp; Decade #2 - 1.5amp; Decade #3 - 0.5amp; Decade #4 - 0.15amp; Decade #5 - 0.05amp; Decade #6 - 0.005amp - See more at: http://www.testequipmentconnection.com/5245/Clarostat_250.php#sthash.he1w1KrO.dpuf

    Clarostat 250 Power Resistance Decade Box, 1 to 999,999 ohms in 1 ohm increments

    The 250 Power Resistance Decade provides a power resistor of any required ohmage from 1 to 999,999 ohms in 1 ohm increments. The ohmage is selected or determined by six from panel dials, and the value is read directly - in sequence - from the dials, thereby simplifying the selection of known or unknown resistances for use in working circuits. Tolerance: Decade #1 - 5%; Decade #2-#6 - 2% Power Rating: Dissipates up to 225 watts max. or 1000 volts DC, or 660 volts AC, max. per decade Maximum Current Ratings: Decade #1 - 5.0amp; Decade #2 - 1.5amp; Decade #3 - 0.5amp; Decade #4 - 0.15amp; Decade #5 - 0.05a

    The 250 Power Resistance Decade provides a power resistor of any required ohmage from 1 to 999,999 ohms in 1 ohm increments. The ohmage is selected or determined by six from panel dials, and the value is read directly - in sequence - from the dials, thereby simplifying the selection of known or unknown resistances for use in working circuits. Tolerance: Decade #1 - 5%; Decade #2-#6 - 2% Power Rating: Dissipates up to 225 watts max. or 1000 volts DC, or 660 volts AC, max. per decade Maximum Current Ratings: Decade #1 - 5.0amp; Decade #2 - 1.5amp; Decade #3 - 0.5amp; Decade #4 - 0.15amp; Decade #5 - 0.05amp; Decade #6 - 0.005amp - See more at: http://www.testequipmentconnection.com/5245/Clarostat_250.php#sthash.he1w1KrO.dpu
