Product Description

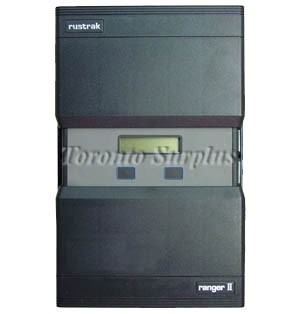

The Rustrak Ranger II has four built-in math channels which can be programmed by the user to perform specific mathematical operations. The unit has 3 voltage input channels capable of measuring 0 to 600 V AC and 3 current input channels for use with current probes (not included). It records and displays voltage, current, power, VARs, power factor; phase angle and more.
SPECIFICATIONS:
- Inputs: 12 channels 8 analog/digital and 4 math
- Input Types: DC & AC V/I, process, pulse , RTD, T/C, Thermistor, pH, RH & event Analog Conversion: 16 bits
- Analog Accuracy: 0.05% of full scale
- Resolution: 0.1mV DC
- Power: 4.4 Ah NiCads, 3.8 V DC
- RAM Storage: 128K bytes standard (256K, 512K, and 1 meg option)
- Configuration Memory: Flash EPROM reprogrammable
Includes: Data Logger, COM 502 Communications Module, 2 x Pod 231-230 Thermal Modules.
