Product Description

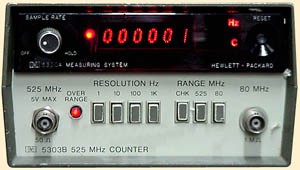

The 5300A has a 6 digid dot matrix display, standard time base, external time base input & BCD output as a standard rear panel output.
The 5303B hs 2 input channels:
Channel A (CW or Burst) has a range of DC to 525 MHz prescaled by 8 and Fixed Sensitivity 100 mV rms sine wave, dc to 500 MHz. 125 mV rms sine wave, 500 MHz to 525 MHz. Signal must pass through zero
Channel B (CW or Burst) has a range of 50 Hz to 80 MHz direct and Automatic Sensitivity 25 mV rms sine wave, 100 Hz to 50 MHz. 50 mV rms sine wave, 50 Hz to 100 Hz and 50 MHz to 80 MHz. Sensitivity is adjusted automatically by Automatic Gain Control.
