Product Description
Due to its outstanding features, the preset counter 326 may be used in many industrial applications. It is specially designed for batch counting, positioning, speed regulation and event timing. The 326 has 6 digits and 1 digit for a negative sign. It is of modern design using power saving C-MOS technology. Counting is effected through a highly integrated CHIP specially designed for KUBLER.
Count Value, preset values and operating status are monitored on a 2 line LC display. In the programming mode the operation parameters may also be displayed.

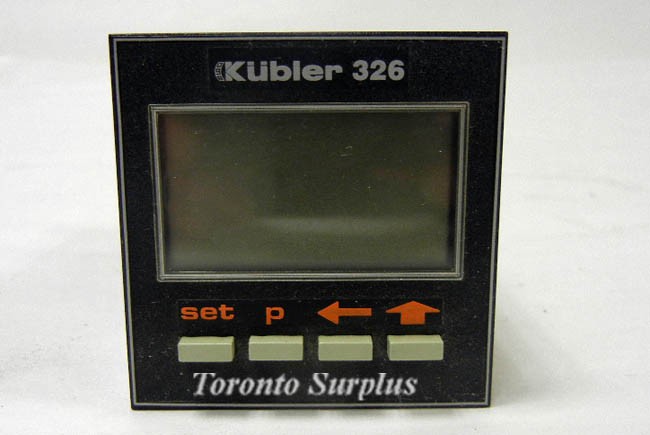

The units are operated through 4 keys on the front panel. The DIP switches to limit input frequency are located on the side of the unit.
When disconnecting the counter or in case of power failure, all count values and parameters are saved in a non volatile memory. No Battery is required. The information is retained for min 10 years. The counter has 3 basic functions, they are as follows:
- Counter with 11 operating modes including, batch counting, auto reset, and positioning with presignal.
- Frequency counter with two limits, zero signal and programmable gate time2 msec to 999.999 sec.
- Timer with 8 operating modes including auto reset resolution in milliseconds, Minutes and hours and hour: Minute: second.
6.326.210.300
326 = Type
2 = Mounting Style: Spring Clip Mount
1 = Colour: Black
0 = Outputs: Relay
OPERATING VOLTAGE
- 230VAC ±10%
- 115VAC ± 10%
- 20 / 30 VDC
